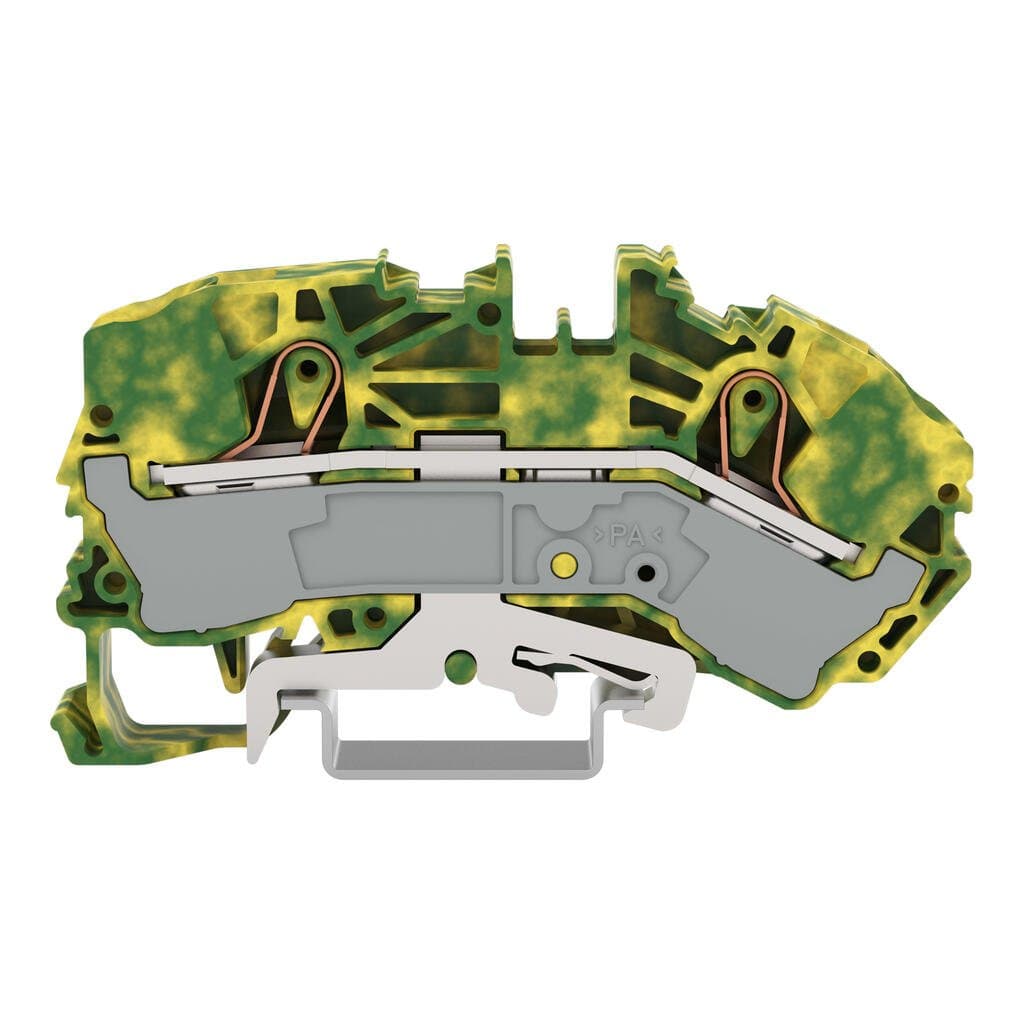

Product Model
2016-7607
Selling Points
- 1Ideal for grounding in control panels and other industrial systems, ensuring secure and reliable electrical connections.
- 2Features WAGO's Push-in CAGE CLAMP technology, allowing for quick and tool-free wire connections.
- 3Accommodates wire sizes from 20 to 4 AWG, making it versatile for a wide range of applications.
- 4Rated for up to 76A, providing reliable performance in high-demand environments.
- 5Fits neatly into any DIN-rail setup with dimensions of 40.8mm height, 85.7mm depth, and 12mm width.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 12?mm?/ 0.472?inches | Height | 85.7?mm?/ 3.374?inches |
Depth from upper-edge of DIN-rail | 40.8?mm?/ 1.606?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.062MJ | Weight | 43.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454725112 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 8a7efa4a-83b9-4a45-a931-2be15094669c |
SCIP notification number (Belgium) | 56bc599b-b4c5-48ca-bcfb-4e4e9b533772 | SCIP notification number (Bulgaria) | 8020763f-aa1d-4631-8603-7d879788f299 |
SCIP notification number (Czech Republic) | 7defc346-ee83-4e2e-a480-c203417322a1 | SCIP notification number (Denmark) | cfdb7c78-e29f-4057-a27f-eca2caf7dade |
SCIP notification number (Finland) | 2d99618d-8a9b-4025-aa54-a01be8b67a01 | SCIP notification number (France) | fa79bff4-fcc9-4754-8099-60c29d367274 |
SCIP notification number (Germany) | 102ed0fb-58fa-4503-895d-177d08927d63 | SCIP notification number (Hungary) | 1aa38cb6-6f74-491f-bf13-ba532274cecf |
SCIP notification number (Italy) | 5dcf9267-8c3c-4c08-9bd0-9b954193e648 | SCIP notification number (Netherlands) | ce185ff1-560a-41cd-8fba-fd484d391ce8 |
SCIP notification number (Poland) | cac6eeca-3277-4142-98dd-adf12e3d3b05 | SCIP notification number (Romania) | fe8f4f00-50dc-4b7e-9e26-a27a08701b67 |
SCIP notification number (Sweden) | 4f5a09f4-868e-49e8-ba82-024b87581726 | Rated current (note) | 15 mm high DIN-35 rails shall be used for a current load higher than 76 A! |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 16 mm2 |
Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Solid conductor; push-in termination | 6 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 0.5 … 25?mm2?/ 20 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 16?mm2?/ 20 … 6?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 6 … 16?mm2?/ 10 … 6?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
