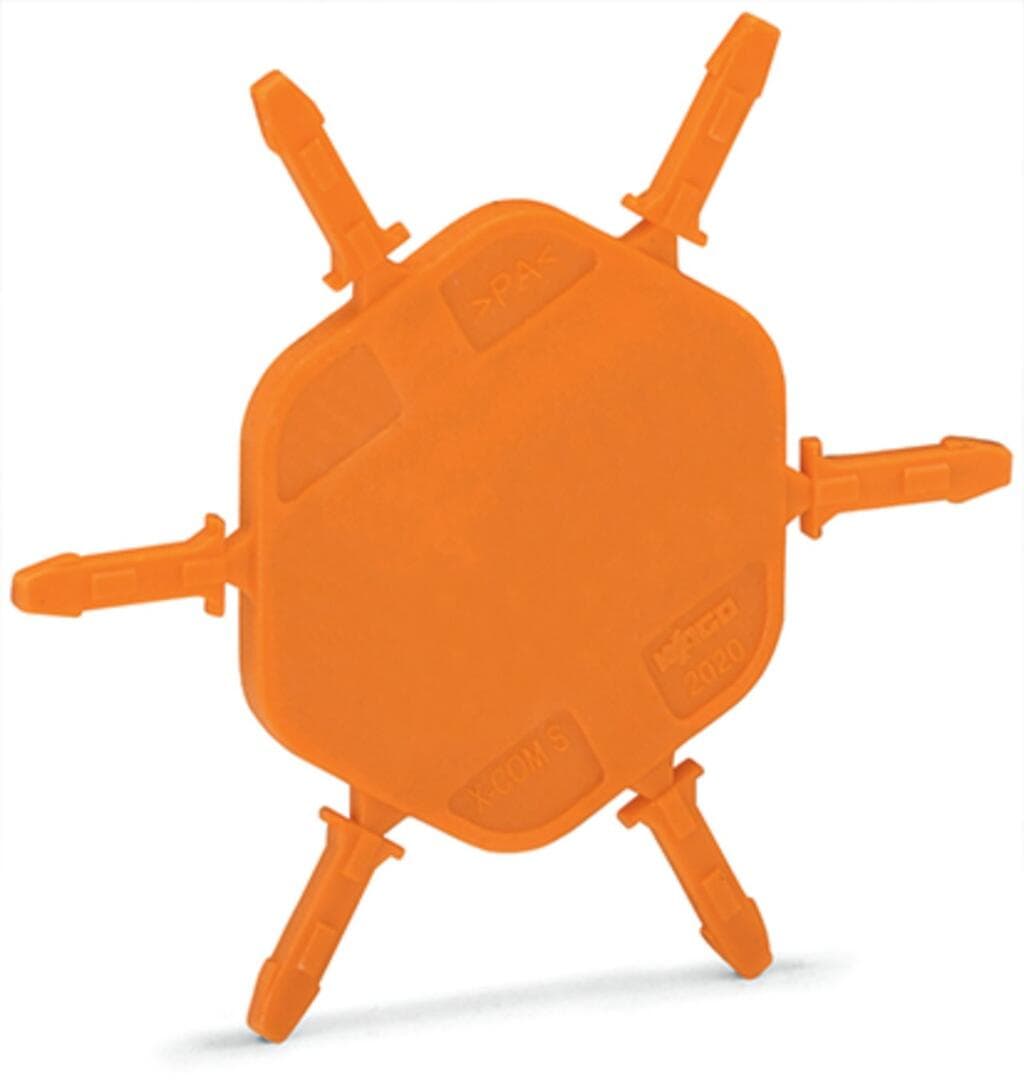

Product Model
2020-100
Selling Points
- 1Easy identification in complex setups.
- 2Perfect for coding female plugs and carrier terminal blocks.
- 3Lightweight at 0.710 grams, ideal for precise applications.
- 4Compatible with the X-COM S-Mini series.
- 5Available in packs of 25 for efficient inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.021MJ |
Weight | 0.7g | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454905491 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
