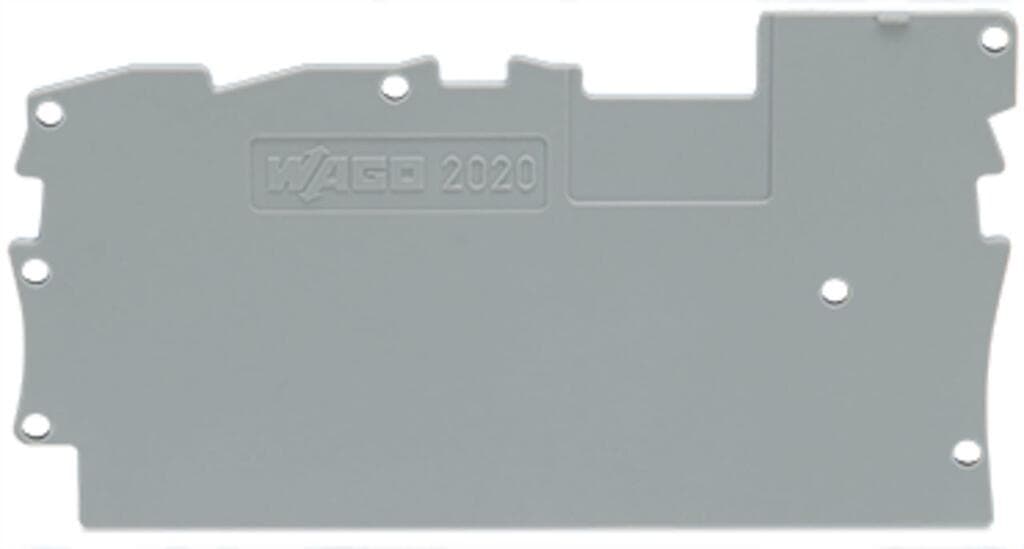

Product Model
2020-1391
Selling Points
- 1Constructed from high-quality polyamide for long-lasting performance.
- 2Available in a sleek gray color for easy identification in electrical systems.
- 3Meets RoHS standards, ensuring environmental sustainability.
- 4Designed specifically for use with terminal blocks in electrical connections.
- 5Measuring 1.24 inches in length, 0.03 inches in width, and 2.27 inches in height for efficient space utilization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Width | 1?mm?/ 0.039?inches |
Height | 57.8?mm?/ 2.276?inches | Depth | 31.6?mm?/ 1.244?inches |
Mounting type | snap-on type | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.067MJ | Weight | 1.8g |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143280839 | Customs tariff number | 85389099990 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
