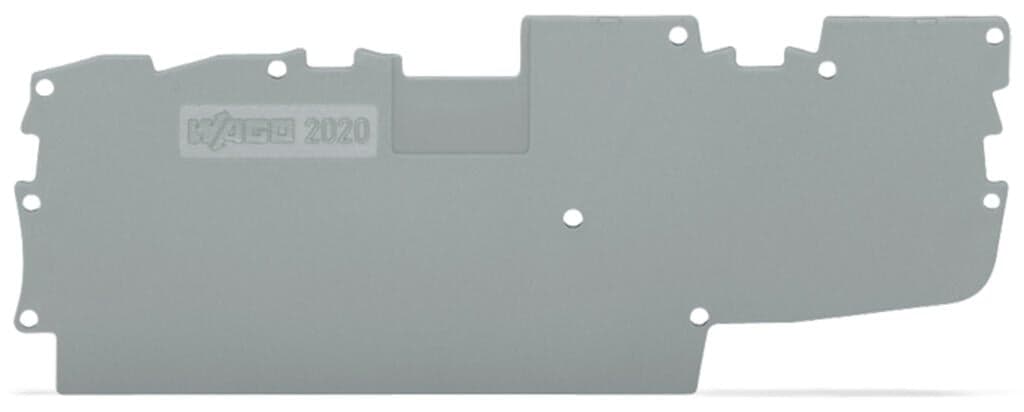

Product Model
2020-1491
Selling Points
- 1High-Quality Material: Made from durable, 1mm thick gray material.
- 2ROHS Compliant: Meets ROHS standards for environmental safety.
- 3Compact Design: Compact size for efficient use in automation systems.
- 4Versatile Application: Suitable for end and intermediate plate applications.
- 5Affordable Pricing: Available at competitive prices starting from £0.46.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Width | 1?mm?/ 0.039?inches |
Height | 84.8?mm?/ 3.339?inches | Depth | 31.6?mm?/ 1.244?inches |
Mounting type | snap-on type | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.107MJ | Weight | 2.5g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454861889 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
