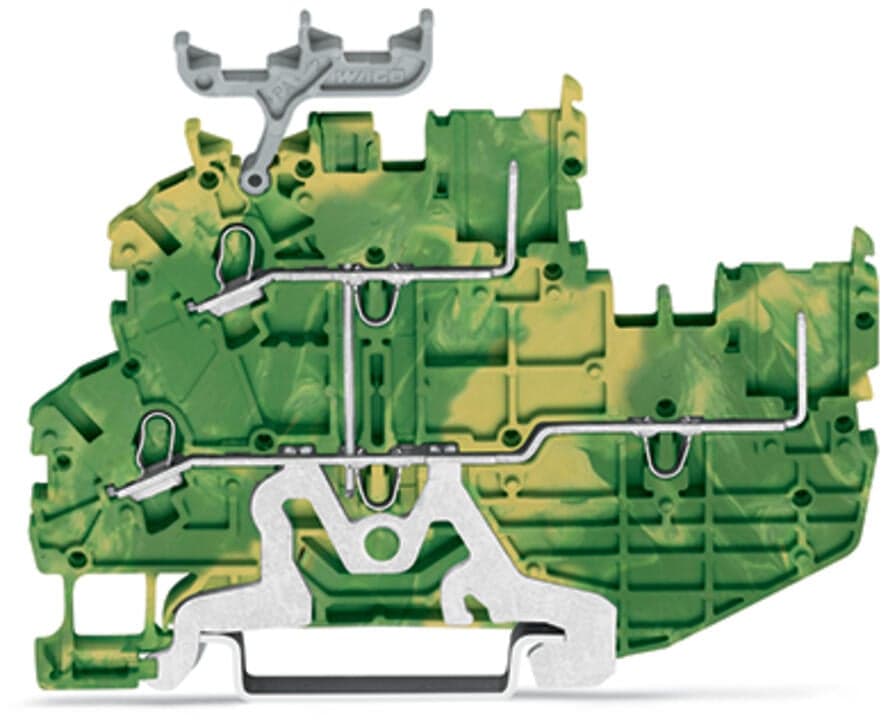

Product Model
2020-2237
Selling Points
- 1Designed for durability with a green-yellow color and protective earth (PE) marking.
- 2Accommodates 2 push-in and 2 plug-in pins for a total of 4 wires.
- 3Suitable for DIN-rail dimensions of 35 x 15 or 35 x 7.5 mm.
- 4Supports wire sizes from 0.14mm² to 1.5mm² or #24AWG to #16AWG.
- 5Features Push-in CAGE CLAMP spring connections for quick and secure wire connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 2 |
Female plug slots | 2 | Total number of potentials | 1 |
Number of levels | 2 | Number of jumper slots | 3 |
Width | 3.5?mm?/ 0.138?inches | Height | 80.1?mm?/ 3.154?inches |
Depth from upper-edge of DIN-rail | 61.4?mm?/ 2.417?inches | Potential Marking | PE |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.227MJ | Weight | 11.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4050821049609 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
