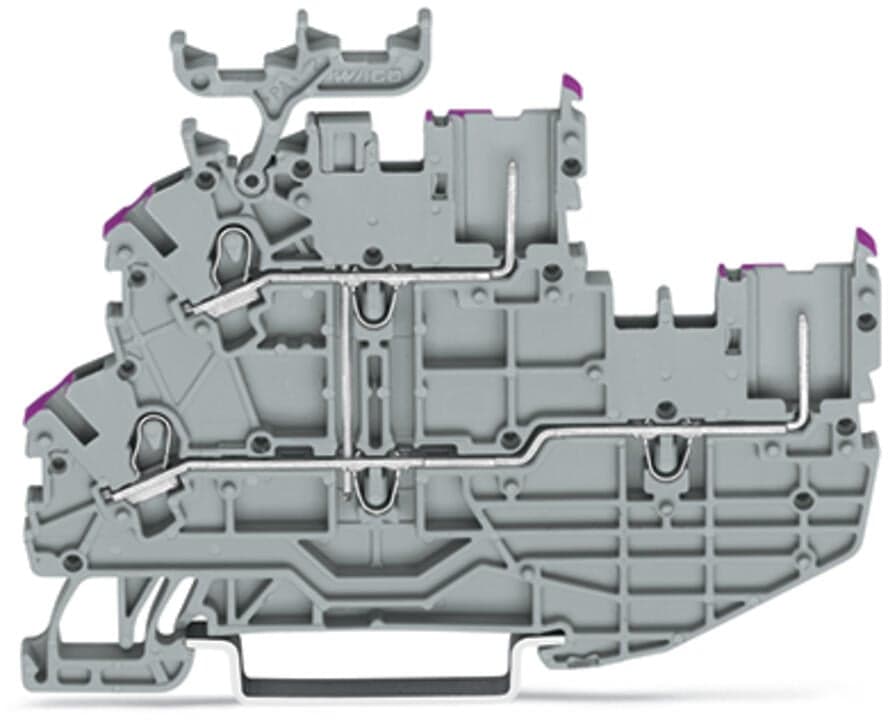

Product Model
2020-2238
Selling Points
- 1Features Push-in CAGE CLAMP spring connections and plug-in pin connections for secure wire management.
- 2Supports up to 13.5A of current, making it suitable for demanding electrical applications.
- 3Designed for mounting on DIN-rail 35 x 15 and 35 x 7.5, ensuring straightforward installation.
- 4Accommodates wires from 0.14mm² to 1.5mm² (#24AWG to #16AWG), providing flexibility in wiring options.
- 5Made from gray polyamide (PA66) for insulation and fire load resistance, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 2 |
Female plug slots | 2 | Total number of potentials | 1 |
Number of levels | 2 | Number of jumper slots | 3 |
Width | 3.5?mm?/ 0.138?inches | Height | 80.1?mm?/ 3.154?inches |
Depth from upper-edge of DIN-rail | 61.4?mm?/ 2.417?inches | Potential Marking | L |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.238MJ | Weight | 10.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4050821049616 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 13.5A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 15A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 15A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Power loss, per pole (potential) | 0.434W | Rated current I<sub>N</sub> for specified power loss | 13.5A |
Resistance value for specified, current-dependent power loss | 0.002Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
