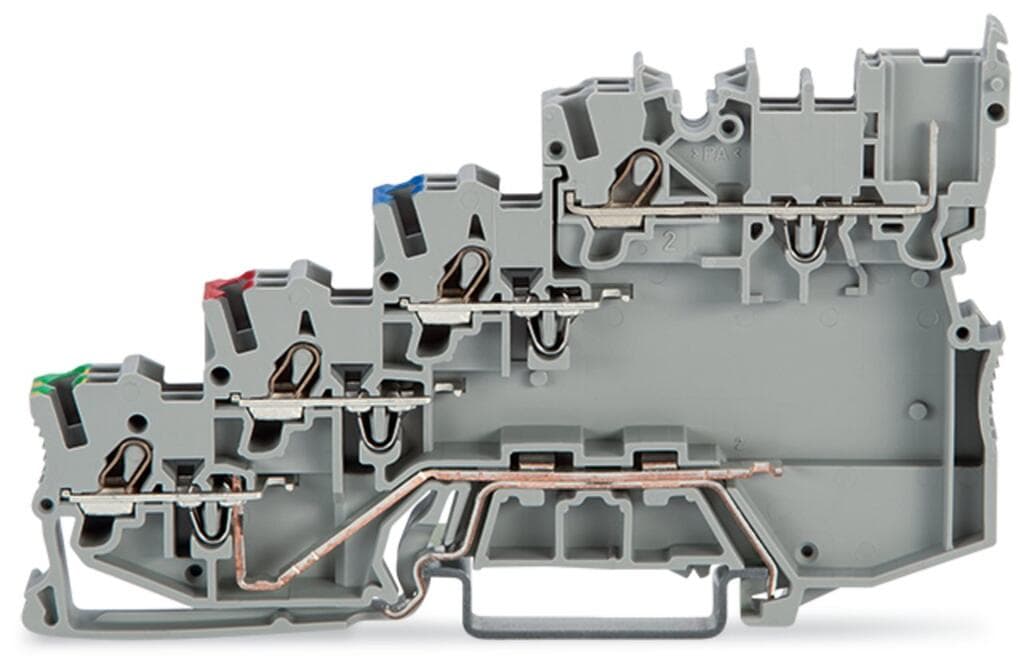

Product Model
2020-5417
Selling Points
- 1Secure and easy installation of solid and stranded conductors.
- 2Versatile mounting option for various industrial automation setups.
- 3Supports up to 15A according to UL standards and 13.5A according to IEC standards.
- 4Made from Polyamide (PA66) for durability and resistance to environmental factors.
- 5Meets or exceeds IEC/EN 60947-7-1, UL 1059, CSA C22.2 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | According to EN 61984, pluggable connectors without a current interrupting capacity must not be mated or unmated when live or under load. An appropriate end plate must be applied to the carrier terminal blocks after each female plug. | Clamping units | 8 |
Female plug slots | 2 | Total number of potentials | 5 |
Number of levels | 4 | Number of jumper slots | 5 |
Width | 7?mm?/ 0.276?inches | Height | 97.3?mm?/ 3.831?inches |
Depth from upper-edge of DIN-rail | 52.4?mm?/ 2.063?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.379MJ | Weight | 20.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-28 | eCl@ss 9.0 | 27-14-11-28 |
ETIM 9.0 | EC000900 | ETIM 8.0 | EC000900 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143525503 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 13.5A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 15A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Power loss, per pole (potential) | 0.434W |
Rated current I<sub>N</sub> for specified power loss | 13.5A | Resistance value for specified, current-dependent power loss | 0.002Ω |
LED schaltend für | PNP | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
