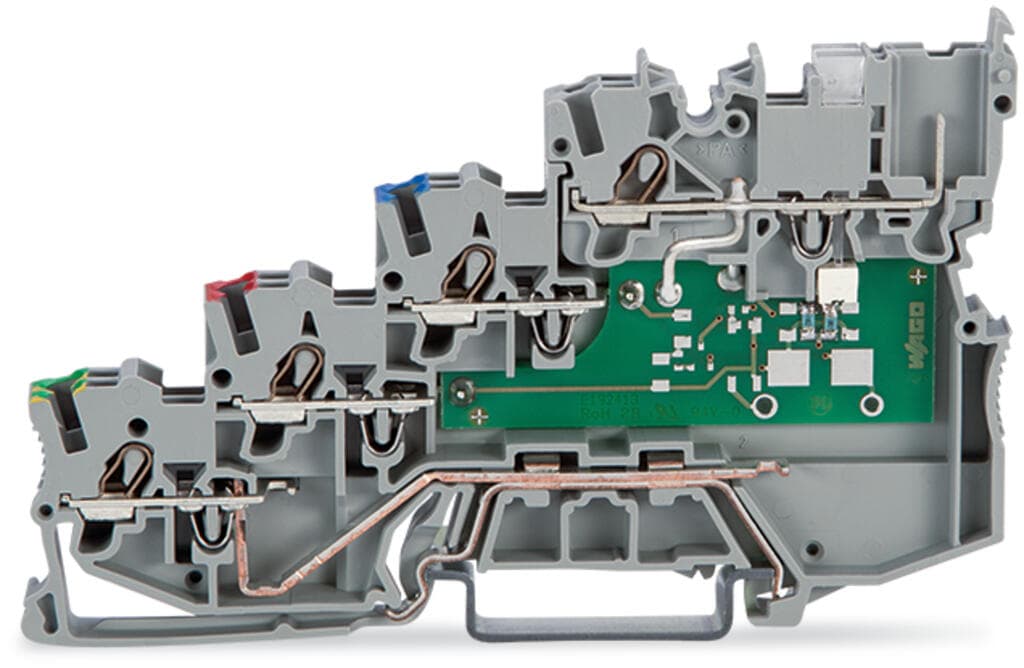

Product Model
2020-5417/1102-950
Selling Points
- 1Designed for PNP high-side switching sensors with a yellow LED indicator.
- 2Accommodates 4 conductors or 8 wires with push-in connections.
- 3Supports wire sizes from 0.14mm² to 1.5mm² (#24AWG to #16AWG).
- 4Features ground contact and pluggable signal level.
- 5Utilizes Push-in CAGE CLAMP spring connections for secure wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | According to EN 61984, pluggable connectors without a current interrupting capacity must not be mated or unmated when live or under load. An appropriate end plate must be applied to the carrier terminal blocks after each female plug. | Clamping units | 8 |
Female plug slots | 2 | Total number of potentials | 5 |
Number of levels | 4 | Number of jumper slots | 4 |
Width | 7?mm?/ 0.276?inches | Height | 97.3?mm?/ 3.831?inches |
Depth from upper-edge of DIN-rail | 52.4?mm?/ 2.063?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.399MJ | Weight | 22.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-28 | eCl@ss 9.0 | 27-14-11-28 |
ETIM 9.0 | EC000900 | ETIM 8.0 | EC000900 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143528634 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated current | 13.5A | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 15A |
Rated voltage CSA (Use Group C) | 24V | Rated current CSA (Use Group C) | 10A |
Power loss, per pole (potential) | 0.434W | Rated current I<sub>N</sub> for specified power loss | 13.5A |
Resistance value for specified, current-dependent power loss | 0.002Ω | Voltage type 1 | DC |
Nominal voltage | 24V | LED schaltend für | PNP |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
