Product Model
2022-103/000-039
Selling Points
- 1Rated for 600 volts and 690 volts, ensuring safe operation in demanding industrial environments.
- 2Push-in CAGE CLAMP technology for quick and secure connections.

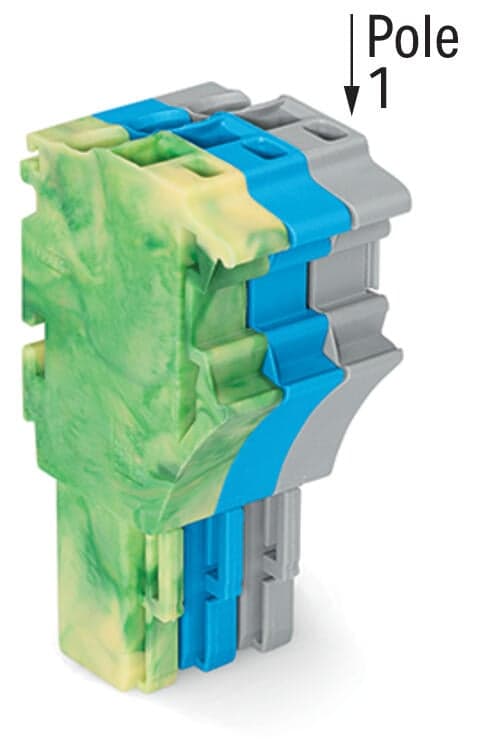

- 3Accommodates protective-earth + neutral + 1-pole (PE+N+1P) connections.
- 4Made from Polyamide (PA) 66 for long-lasting performance.
- 5Color-coded with green-yellow for earth, blue for neutral, and gray for the 1-pole.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 3 |
Total number of potentials | 3 | Width | 15.6?mm?/ 0.614?inches |
Height | 40.5?mm?/ 1.594?inches | Depth | 22.4?mm?/ 0.882?inches |
Module width | 5.2?mm?/ 0.205?inches | Variable coding | Yes |
Marking level | Side marking | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Note (material data) | Information on material specifications can be found here | Color | green-yellow/blue/gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.166MJ |
Weight | 9.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4045454915766 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
Rated voltage (III / 3) | 690V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Current at conductor cross-section (max.) mm2 | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Number of poles | 3 |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
