Product Model
2022-1291
Selling Points

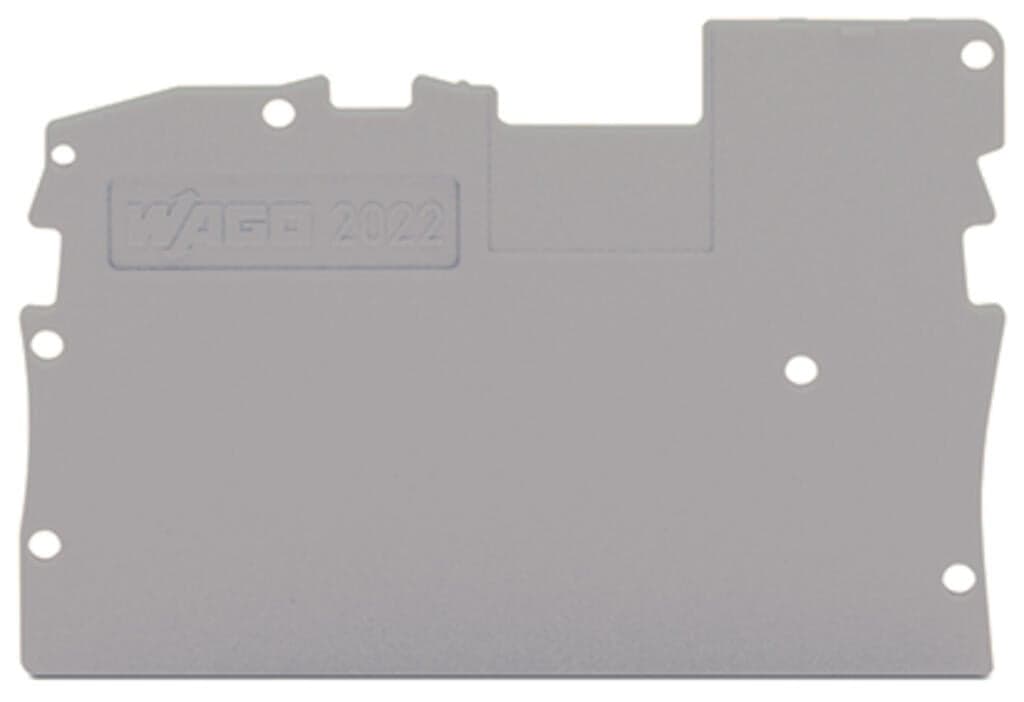

- 1Gray Color: The WAGO 2022-1291 end and intermediate plate features a durable gray color.
- 21mm Thickness: Made with 1mm thickness for robust performance.
- 3ROHS Compliant: Meets ROHS compliance standards for environmental safety.
- 4Versatile Use: Suitable for use with a variety of rail mount terminal blocks.
- 5Pack of 25: Available in packs of 25 for convenient bulk ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 48.5?mm?/ 1.909?inches |
Depth | 31.6?mm?/ 1.244?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.075MJ |
Weight | 1.6g | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454706449 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
