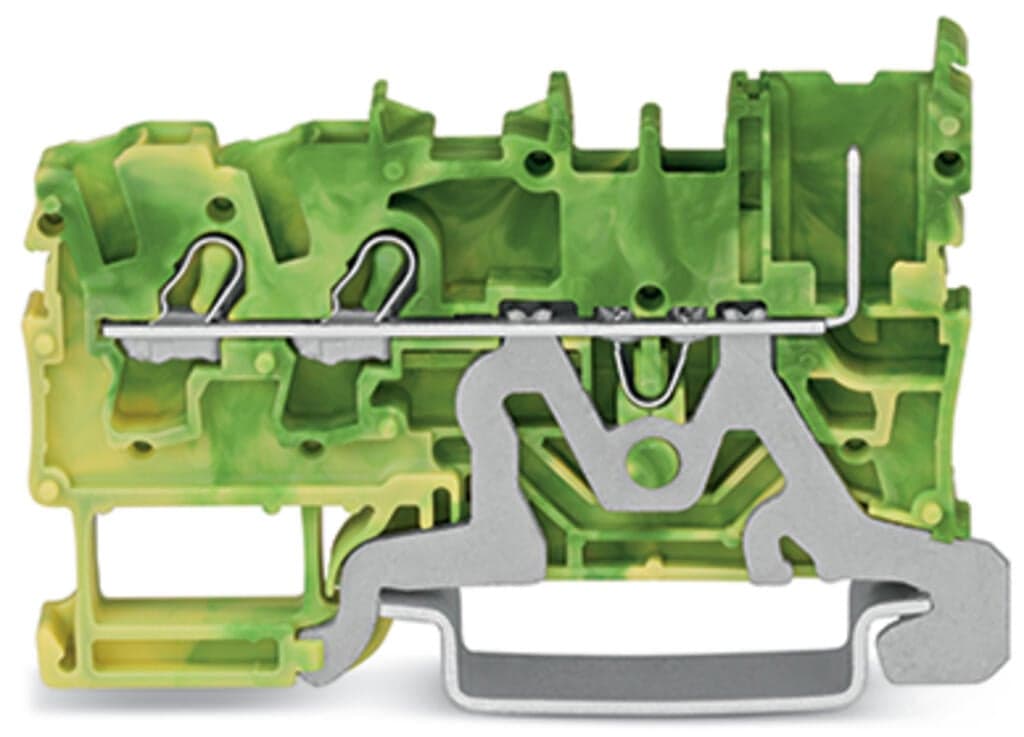

Product Model
2022-1307
Selling Points
- 12-Conductor Design: Accommodates two wires with a nominal cross-section of 2.5 mm².
- 2Push-in CAGE CLAMP: Easy and secure wire connections using Push-in CAGE CLAMP technology.
- 3DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5 for versatile installation.
- 4RoHS Compliant: Meets RoHS guidelines, ensuring environmental sustainability.
- 5Versatile Applications: Suitable for grounding and protective earth applications, including Ex nA environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 2 |
Female plug slots | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5.2?mm?/ 0.205?inches |
Height | 61.8?mm?/ 2.433?inches | Depth from upper-edge of DIN-rail | 36.4?mm?/ 1.433?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.136MJ |
Weight | 9.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4050821145165 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 1 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
