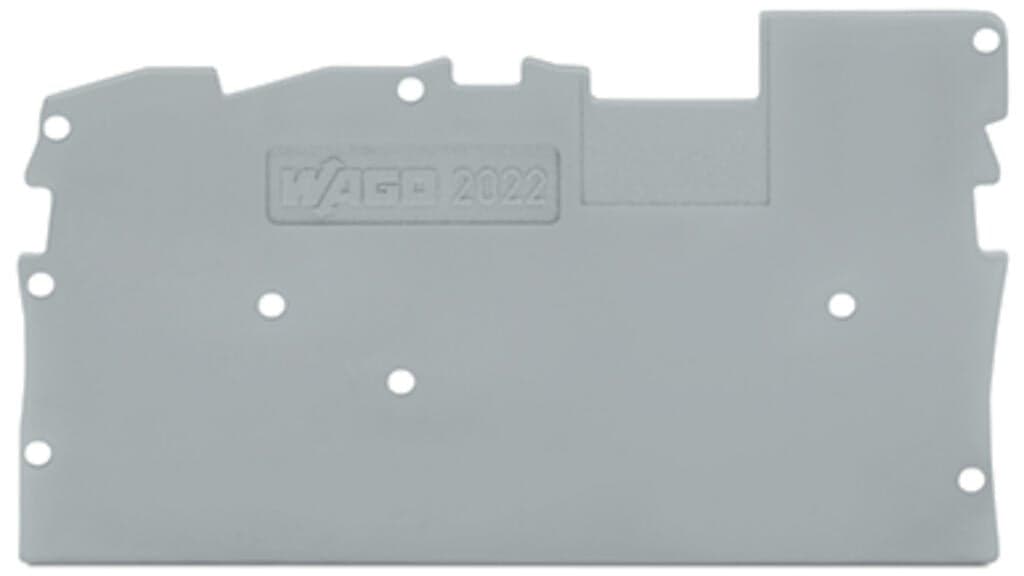

Product Model
2022-1391
Selling Points
- 1Rated up to 600 V, suitable for demanding electrical projects.
- 2Simplify installation with pre-wired subassemblies and push-in CAGE CLAMP® connection.
- 3Durable construction with 0.7 mm thick end and intermediate plates for long-lasting performance.
- 4Three marking positions for WMB or miniature WSB markers, including centered full-length marking strips.
- 5Solid conductors can be inserted directly without tools, and jumper bars rated at 800 V ensure reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 58.9?mm?/ 2.319?inches |
Depth | 31.6?mm?/ 1.244?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.058MJ |
Weight | 1.9g | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454913786 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
