Product Model
2022-142
Selling Points

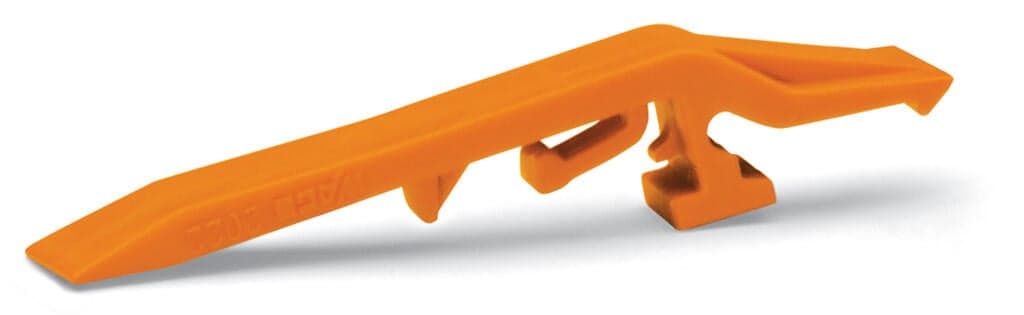

- 1Designed for 1-conductor female plugs with a centered locking mechanism.
- 2Available in an orange color for easy identification.
- 3Compatible with 1-pole female plugs.
- 4Measures 4.8mm in width.
- 5Meets ROHS compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 4.8?mm?/ 0.189?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.012MJ | Weight | 0.4g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454732752 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
