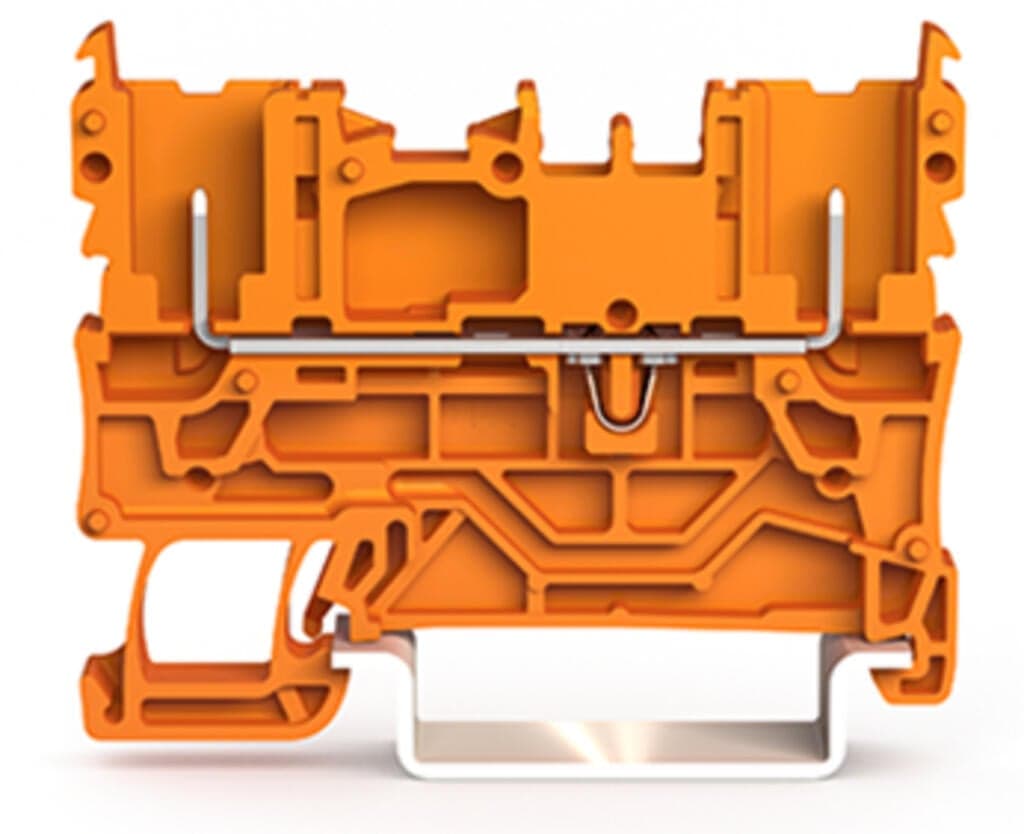

Product Model
2022-1602
Selling Points
- 1UL and CSA approved, ensuring safe and reliable electrical connections.
- 2CAGE CLAMP connection technology saves labor hours during wiring and maintenance.
- 3Made from polyamide (PA66) with a flammability class of UL94 V0.
- 4Compatible with DIN-rail 35 x 15 and 35 x 7.5, providing flexibility in installation.
- 5Carrier terminal blocks are touch-proof, ensuring safety in electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Female plug slots | 2 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5.2?mm?/ 0.205?inches | Height | 52?mm?/ 2.047?inches |
Depth from upper-edge of DIN-rail | 32.5?mm?/ 1.28?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 5.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4055143828840 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 690V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Rated current 2 | 28A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
Specifications may be subject to change without notice
