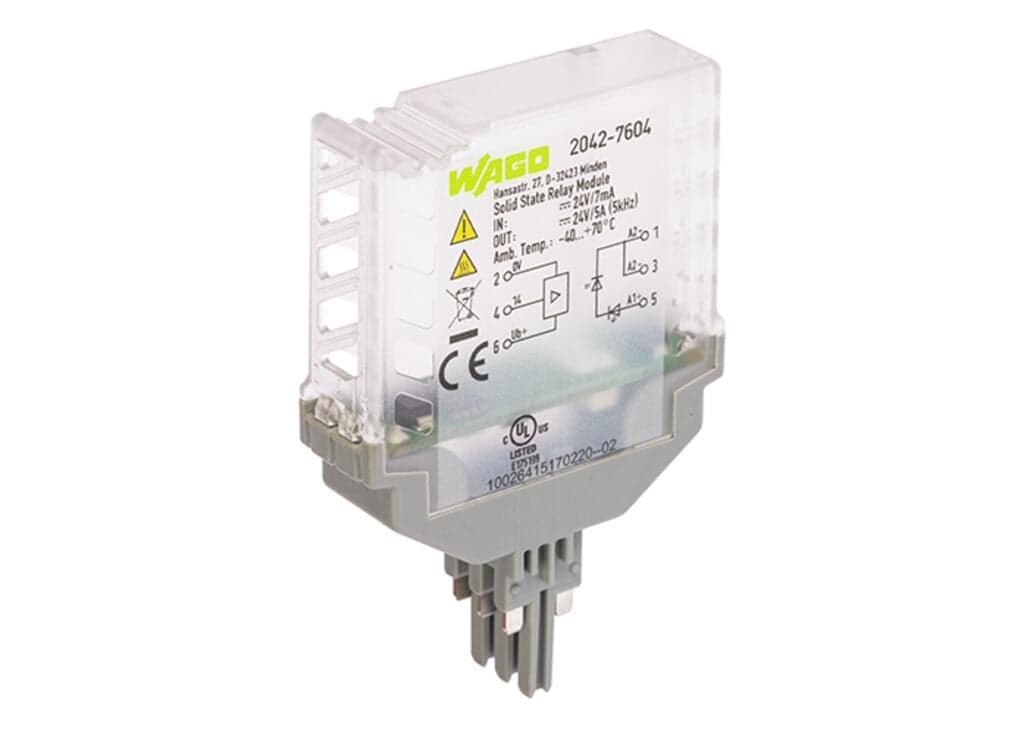

Product Model
2042-7604
Selling Points
- 1Reliable DC 24V Control: Operates with a nominal input voltage of 24 VDC and an output voltage range of 0-24 VDC.
- 2High-Side Switching: Utilizes a 3-wire connection for high-side switching, ensuring efficient and safe operation.
- 3Low Inrush Current: Designed to minimize inrush current, reducing stress on the power supply.
- 4Compact Design: Measures 15.5 mm in width and 77.7 mm in height, making it suitable for space-constrained applications.
- 5Comprehensive Certifications: Meets international standards including UL 61010-1 and EAC certifications for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Overvoltage category | II |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms |
Protection type | IP20 | Width | 15.5?mm?/ 0.61?inches |
Height | 77.7?mm?/ 3.059?inches | Height from the surface | 59.3?mm?/ 2.335?inches |
Depth | 52?mm?/ 2.047?inches | Mounting type | Pluggable module for TOPJOB?S carrier terminal block |
Note (material data) | Information on material specifications can be found here | Flammability class per UL94 | V0 |
Fire load | 0.149MJ | Weight | 17.1g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50?°C | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | eCl@ss 10.0 | 27-14-11-49 |
eCl@ss 9.0 | 27-14-11-49 | ETIM 9.0 | EC002018 |
ETIM 8.0 | EC002018 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4055143748759 |
Customs tariff number | 85365005000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | aeadaa7b-4e41-4f2a-8dba-ddf07944d5d6 |
SCIP notification number (Belgium) | 10fe3c50-f77f-4362-8af6-2b451af9fecc | SCIP notification number (Bulgaria) | 47ca3f4c-a070-4c59-868d-7289b57981f5 |
SCIP notification number (Czech Republic) | 89a45afd-088f-42f7-aacd-f93b1a70bc06 | SCIP notification number (Denmark) | fcfac643-f8cb-4e30-9b3f-11fbb3fcfbad |
SCIP notification number (Finland) | 139db015-851c-41bb-8546-82cf6a27339b | SCIP notification number (France) | a58beff9-5b13-4487-9dcb-eecbf5db0f3c |
SCIP notification number (Germany) | cb1e23bb-2d4e-4faa-a043-a6660f824455 | SCIP notification number (Hungary) | 65b5cee0-d03c-4815-ae01-cd0826fb6487 |
SCIP notification number (Italy) | 34e0e620-d011-47af-bf56-be0dbfc40e9e | SCIP notification number (Netherlands) | d45270f7-6d1c-4245-b0d9-01f27652a01f |
SCIP notification number (Poland) | a6441ed9-1410-48d9-aba3-9d36f74d6fc8 | SCIP notification number (Romania) | 3a93c174-69ec-4a26-b284-abac1ca8fc5d |
SCIP notification number (Sweden) | dede4d15-1cb6-4d12-9574-79ea785e42d4 | Nominal input voltage U<sub>N</sub> | DC?24?V (SELV) |
Input voltage range (low level) | DC?0 … 10?V | Input voltage range (high level) | DC?16.8 … 30?V |
Nominal input current at U<sub>N</sub> | 7?mA | Input current range | 6 … 8?mA |
Circuit type | 3-wire connection | Limiting continuous current | 5?A |
Nominal output voltage | DC?24?V (SELV) | Output voltage range | DC 16.8 … 30?V |
Voltage drop | ≤ 1?VDC | Switching current (min.) | 3?mA |
Turn-on time | ≤?10?μs | Turn-off time | ≤?20?μs |
Switching frequency | ≤?5?kHz | Status indicator | Green LED |
Specifications may be subject to change without notice
