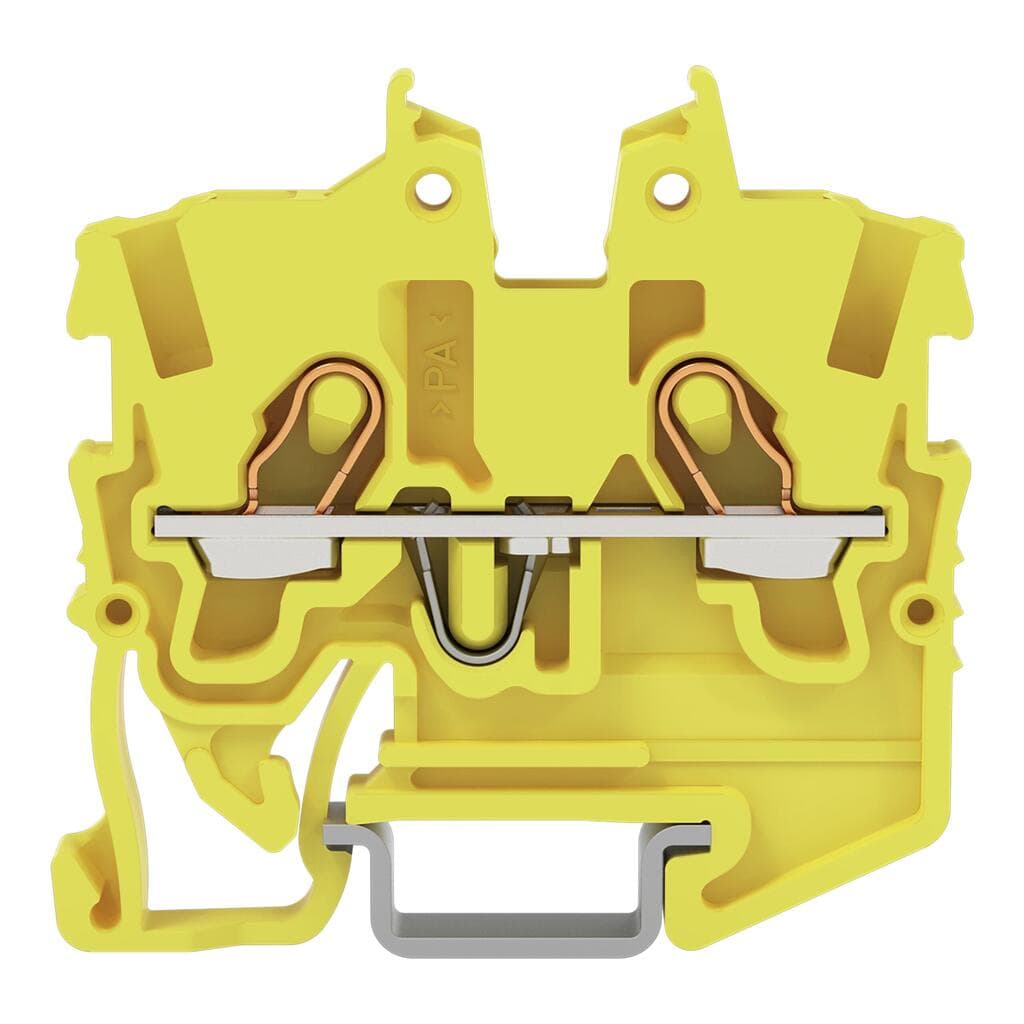

Product Model
2050-1206
Selling Points
- 1Compact Design: 3.5mm width, 34.1mm height, and 2.420 grams weight.
- 2High Voltage Compatibility: Supports up to 500 volts.
- 3Flexible Wiring: Accommodates wire sizes from 0.14mm² to 1.5mm² or #24AWG to #16AWG.
- 4Enhanced Safety: Meets Ex e II standards for hazardous environments.
- 5Easy Installation: Push-in CAGE CLAMP connections simplify wiring and reduce installation time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 3.5?mm?/ 0.138?inches | Height | 34.1?mm?/ 1.343?inches |
Depth from upper-edge of DIN-rail | 27.9?mm?/ 1.098?inches | Mounting type | DIN-15 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.049MJ | Weight | 2.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | Box | Country of origin | IN |
GTIN | 4066966312737 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 13.5A | Current at conductor cross-section (max.) mm2 | 17.5A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 352V |
Rated current (Ex e II) | 13.5A | Rated current (Ex e II) with jumper | 12A |
Power loss, per pole (potential) | 0.434W | Rated current I<sub>N</sub> for specified power loss | 13.5A |
Resistance value for specified, current-dependent power loss | 0.002Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG | Fine-stranded conductor; with uninsulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 1 mm2 / 20 … 18 AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
