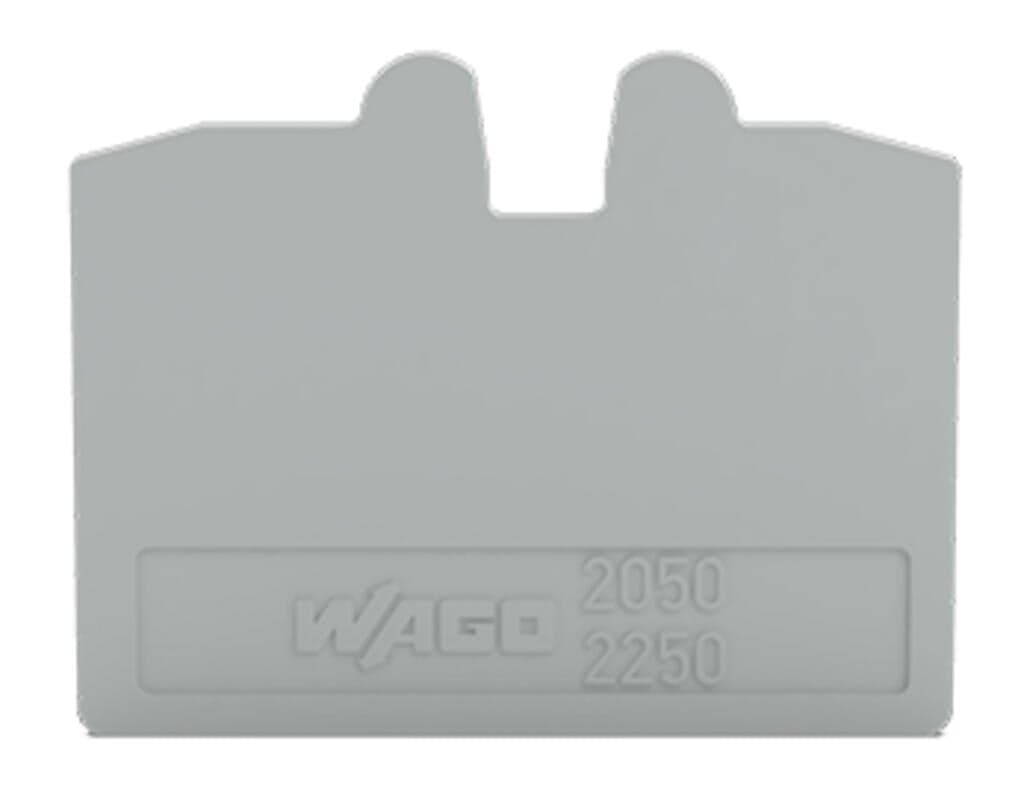

Product Model
2050-1291
Selling Points
- 1Durable Construction: 1.1 mm thick, made from high-quality polyamide 6.6.
- 2Fire-Resistant: Meets 0.028 MJ fire load standards, ensuring safety in harsh environments.
- 3Easy Installation: Compatible with TOPJOB S series rail-mounted terminal blocks.
- 4Compact Design: Dimensions: 1.1 mm x 32.5 mm x 25.2 mm, ideal for space-constrained applications.
- 5Gray Color: Aesthetically pleasing and easy to integrate into various electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 32.1 mm / 1.264 inches |
Depth | 25.2?mm?/ 0.992?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.028MJ |
Weight | 0.9g | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143951357 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
