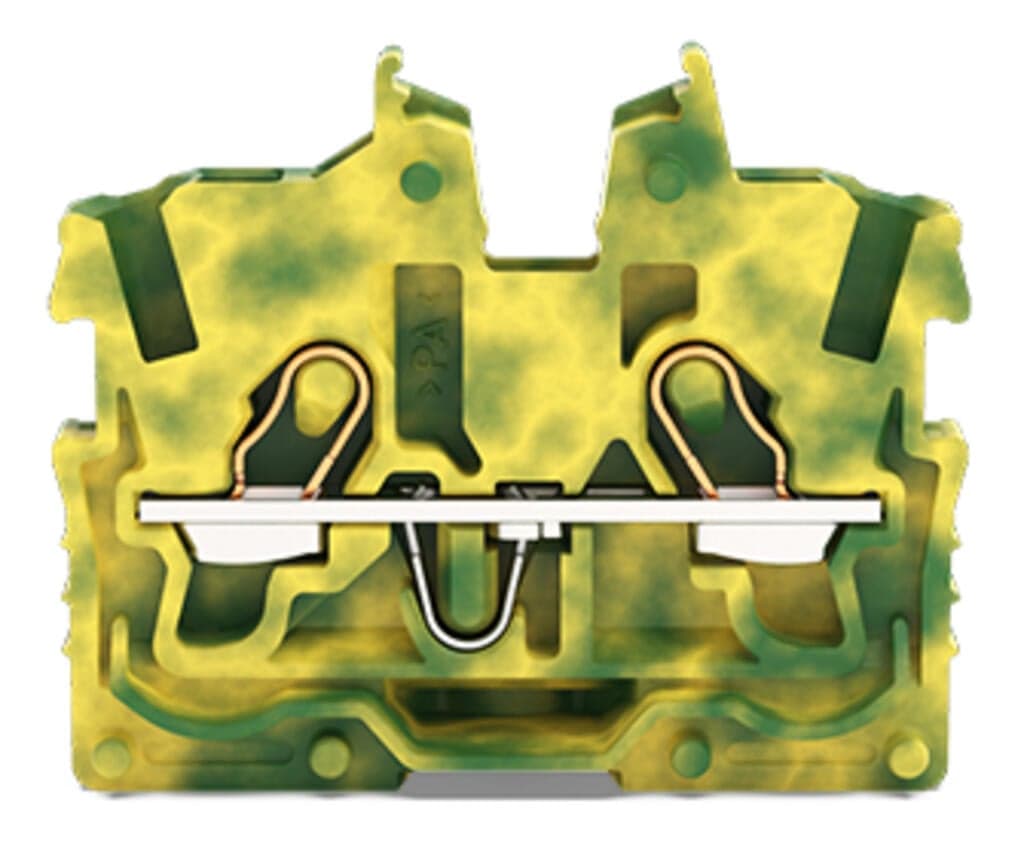

Product Model
2050-307
Selling Points
- 1Compact design for tight spaces in motor and pump terminal boxes.
- 2Custom mounting options including DIN 15 rail, flange, and snap-in foot.
- 3High current ratings: 13.5 (17.5) A and 24 (32) A.
- 4Rated voltage: 500 V IEC and 800 V IEC.
- 5Push-in CAGE CLAMP termination for quick and secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 3.5?mm?/ 0.138?inches | Height from the surface | 27.2?mm?/ 1.071?inches |
Depth | 33.2?mm?/ 1.307?inches | Mounting type | Mounting flange |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 2.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | IN | GTIN | 4055143965125 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb) | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 13.5A |
Current at conductor cross-section (max.) mm2 | 17.5A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 352V | Rated current (Ex e II) | 13.5A |
Rated current (Ex e II) with jumper | 12A | Power loss, per pole (potential) | 0.434W |
Rated current I<sub>N</sub> for specified power loss | 13.5A | Resistance value for specified, current-dependent power loss | 0.002Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 1 mm2 / 20 … 18 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring |
