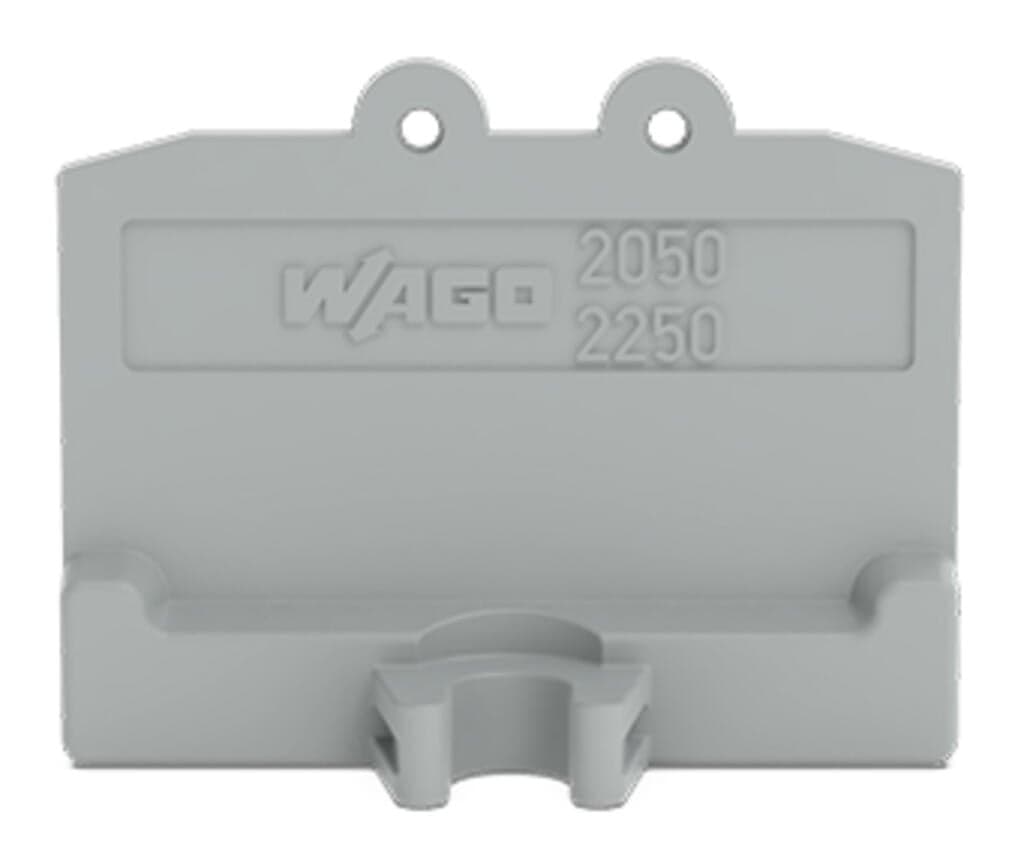

Product Model
2050-381
Selling Points
- 1Versatile Compatibility: Designed for use with TOPJOB S Series rail-mounted terminal blocks.
- 2High-Quality Material: Made from durable polyamide 6.6, ensuring robust electrical connections.
- 3Fire Safety: Meets stringent fire load specifications of 0.04 MJ, ensuring safety in electrical applications.
- 4Easy Installation: Easy to use and install, with a fixing flange for secure mounting.
- 5Compliance Standards: Compliant with RoHS standards, ensuring environmental safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.3?mm?/ 0.051?inches | Height | 32.1?mm?/ 1.264?inches |
Depth | 25.2?mm?/ 0.992?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.04MJ |
Weight | 1.3g | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143951104 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
