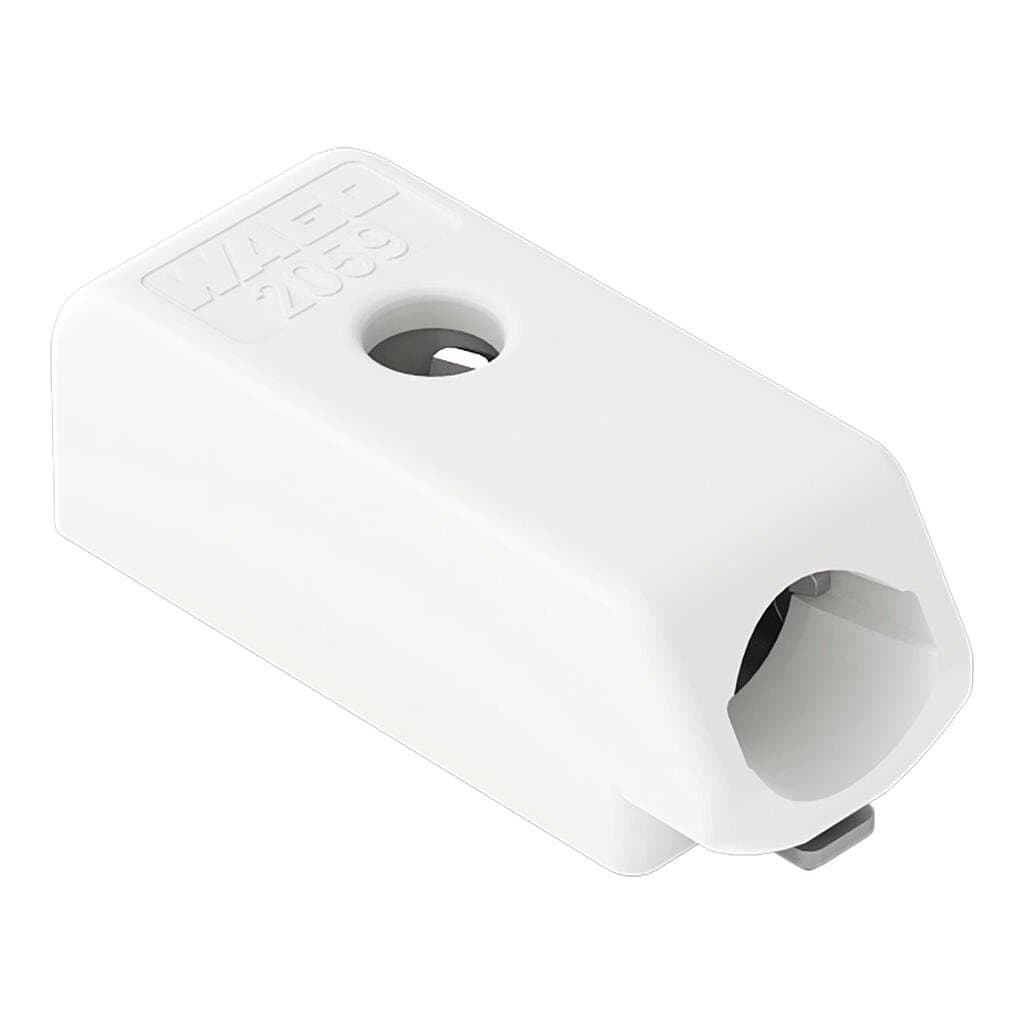

Product Model
2059-301/998-603
Selling Points
- 1Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature.
- 2Push-in termination of solid conductors for easy and secure connections.
- 3Easy conductor removal via operating tool, ensuring hassle-free maintenance.
- 4Just 2.7 mm tall, perfect for space-constrained applications.
- 5Available in tape-and-reel packaging for automated assembly, enhancing efficiency in production processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thickness; Pattern layout identical to solder pad layout |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3 mm / 0.118 inches | Width | 2.9 mm / 0.114 inches |
Height | 2.7 mm / 0.106 inches | Depth | 7.9 mm / 0.311 inches |
Reel diameter of tape-and-reel packaging | 380mm | Tape width | 16mm |
PCB contact | SMD | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Tin |
Fire load | 0.004MJ | Weight | 0.2g |
Limit temperature range | -60 … +105 °C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 44400 (3700) pcs | Packaging type | Box |
Country of origin | CH | GTIN | 4066966483383 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 63V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 3A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 3A | Connection technology | PUSH WIRE? |
Actuation type | Operating tool | Solid conductor | 0.14 … 0.34 mm2 / 26 … 22 AWG |
Note (conductor cross-section) | For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using an operating tool. | Strip length | 4 … 5.5 mm / 0.16 … 0.22 inches |
Conductor connection direction to PCB | 0° | Number of poles | 1 |
Solid conductor 2 | 0.5 mm2 / 20 AWG | Note (conductor cross-section) 2 | No reconnection of smaller conductor cross-sections (0.5 mm2/20 AWG) |
Strip length 2 | 6 … 7.5 mm / 0.24 … 0.3 inches | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
