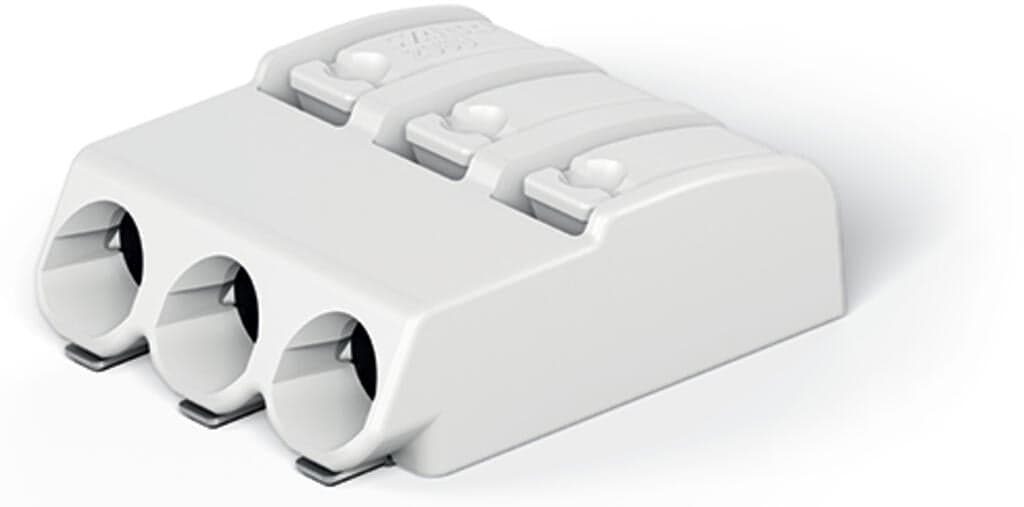

Product Model
2060-453/998-404
Selling Points
- 1High-Durability Design: Built with tin-plated copper alloy contacts for reliable performance.
- 2Versatile Applications: Suitable for industrial and LED light applications.
- 3Easy Connection: Push-button design allows for direct push-in of solid conductors.
- 4Wide Temperature Range: Operates from -60°C to +105°C.
- 5Surface Mount Compatible: Ideal for SMT applications with a 4 mm pitch spacing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thickness; Pattern layout identical to solder pad layout |
Clamping units | 3 | Total number of potentials | 3 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 4?mm?/ 0.157?inches | Width | 11.9?mm?/ 0.469?inches |
Height | 4.5?mm?/ 0.177?inches | Depth | 13.1?mm?/ 0.516?inches |
Reel diameter of tape-and-reel packaging | 330mm | Tape width | 24mm |
PCB contact | SMD | Solder pin arrangement | Over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Clamping spring material | Copper alloy | Contact material | Copper alloy |
Contact plating | Tin | Weight | 0.8g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
Product Group | 33 (SMT Terminal) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 6750?(750)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4055143888196 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 63V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 9A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Rated voltage (UL 1977) | 320V |
Rated current UL 1977 | 9A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.34?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.34?mm2 | Strip length | 7 … 9?mm?/ 0.28 … 0.35?inches |
Conductor connection direction to PCB | 0° | Number of poles | 3 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
