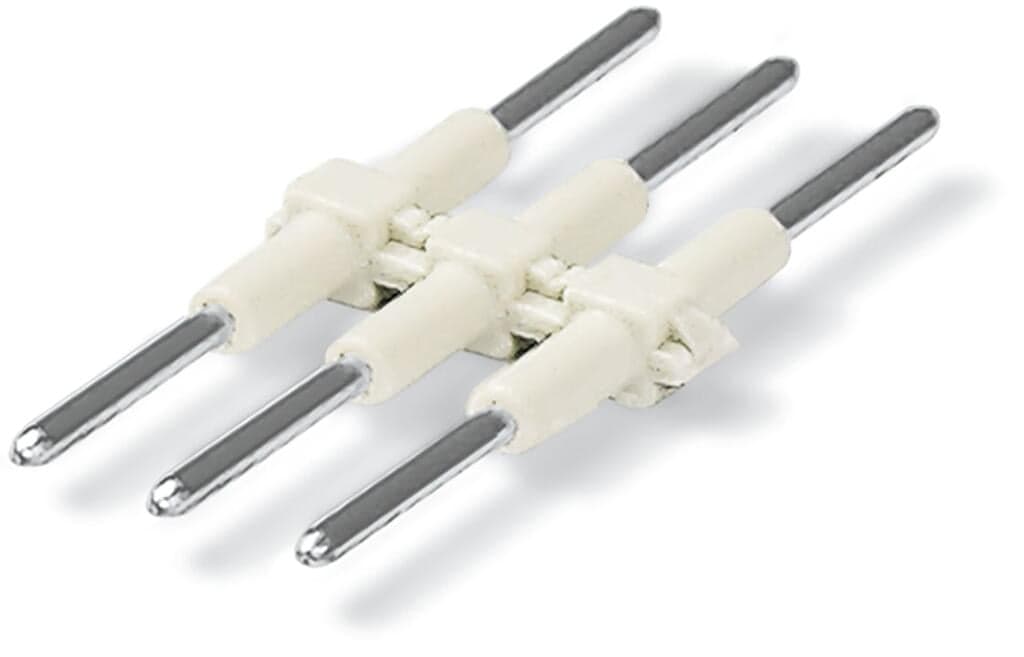

Product Model
2060-953/028-004
Selling Points
- 1Simplify assembly with quick and secure connections.
- 2Rated for 9A current and 160V nominal voltage.
- 3Pin spacing of 4 mm and length of 28 mm for efficient use.
- 4Operates within -60°C to +105°C temperature range.
- 5Meets environmental product compliance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice:Only suitable for 2060-45x, not for 2060-40x. | Total number of potentials | 3 |
Pin spacing | 4?mm?/ 0.157?inches | Width | 11.4?mm?/ 0.449?inches |
Height | 2.6?mm?/ 0.102?inches | Depth | 28?mm?/ 1.102?inches |
Mating cycles (max.) | 10 | Number of mating cycles | 10 connections/disconnections (max.) |
Suitable | for SMD PCB terminal blocks (2060 Series) | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Silver |
Weight | 0.7g | Limit temperature range | -60 … +105?°C |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 375?pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4066966301250 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 63V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 25kV |
Rated current | 9A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Rated voltage (UL 1977) | 250V | Rated current UL 1977 | 9A |
Number of poles | 3 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
