Product Model

2060-962/028-000

Manufacturer

wago

Category

Pcb Interconnect

Product ID

42472

In Stock
Last updated: 2025/4/18
View Specifications

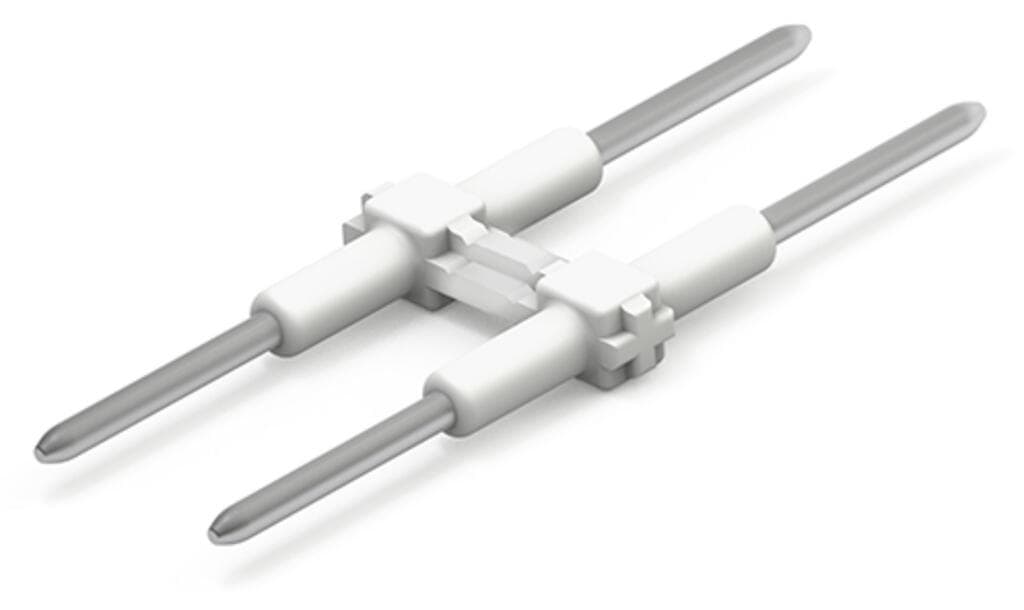

wago 2060-962/028-000

Selling Points

  • 1Simplify your LED module assembly with the WAGO 2060-962/028-000's easy push-in termination.
  • 2Effortlessly disconnect without the need for push-button actuation.
  • 3Rated for 400V and 6kV impulse voltage, ensuring reliable performance in demanding electrical systems.
  • 4Made from insulating polyamide 66 (PA 66) with silver-plated copper alloy contacts for long-lasting durability.
  • 5Meets UL 1977 and EN 60947 standards, ensuring compliance with industry regulations.
Product Details
2060-962/028-000
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Safety information
Notice:Only suitable for 2060-45x, not for 2060-40x.
Total number of potentials
2
Pin spacing
8?mm?/ 0.314?inches
Width
11.4?mm?/ 0.449?inches
Height
2.6?mm?/ 0.102?inches
Depth
28?mm?/ 1.102?inches
Mating cycles (max.)
10
Number of mating cycles
10 connections/disconnections (max.)
Suitable
for SMD PCB terminal blocks (2060 Series)
Note (material data)
Information on material specifications can be found here
Color
white
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Contact material
Copper alloy
Contact plating
Silver
Fire load
0.003MJ
Weight
0.5g
Limit temperature range
-60 … +105?°C
eCl@ss 10.0
27-14-11-92
eCl@ss 9.0
27-14-11-92
ETIM 9.0
EC002848
ETIM 8.0
EC002848
ECCN
NO US CLASSIFICATION
PU (SPU)
375?pcs
Packaging type
box
Country of origin
CN
GTIN
4055143322898
Customs tariff number
8536908585
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
400V
Rated impulse voltage (III / 3)
6kV
Rated voltage (III/2)
630V
Rated surge voltage (III/2)
6kV
Nominal voltage (II/2)
1000V
Rated surge voltage (II/2)
6kV
Rated current
9A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Rated voltage (UL 1977)
600V
Rated current UL 1977
9A
Number of poles
2
