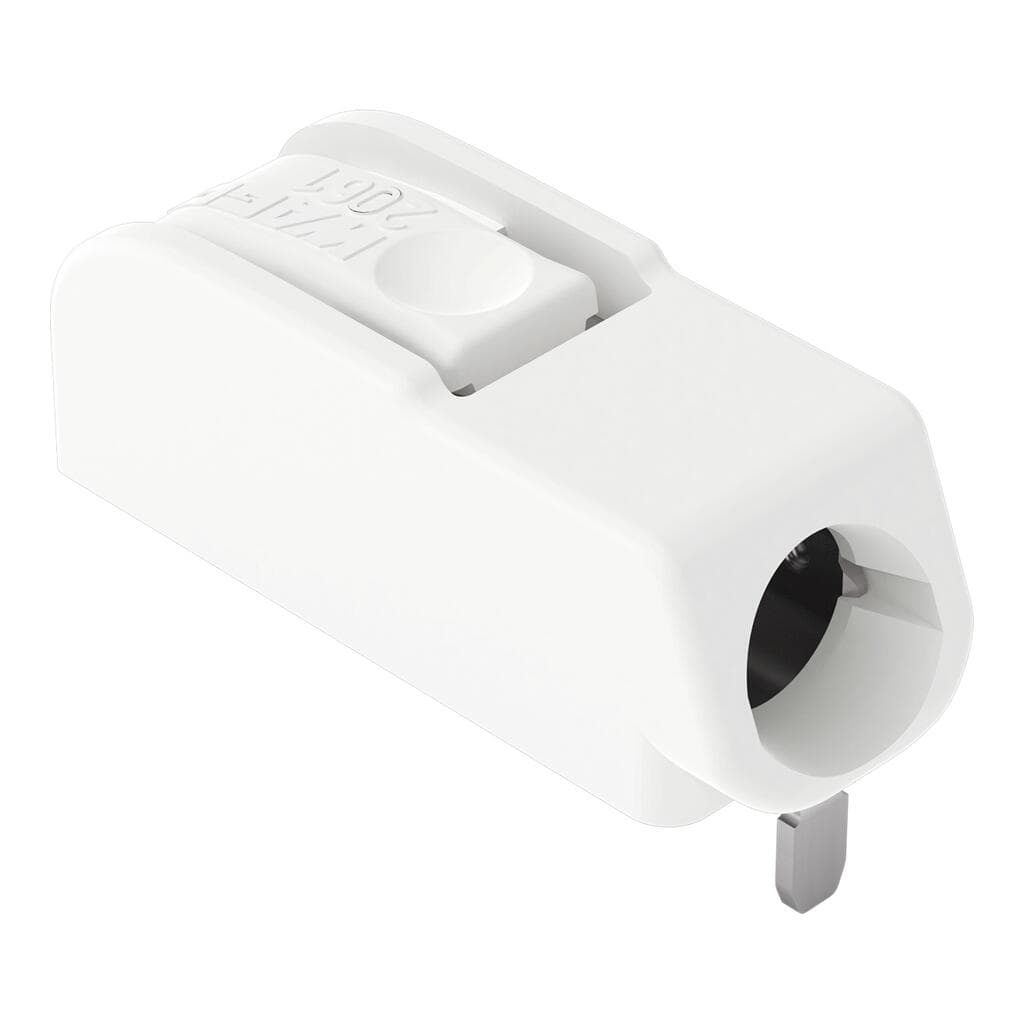

Product Model
2061-1601/998-404
Selling Points
- 1Push-in CAGE CLAMP technology simplifies conductor connection.
- 2Designed to handle up to 800 V, ensuring reliable performance in demanding environments.
- 3Rastermaat of 6 mm for space-efficient installation in tight spaces.
- 4Suitable for one-pole connections, ideal for various industrial applications.
- 5Constructed with high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 6?mm?/ 0.24?inches | Width | 5.7?mm?/ 0.224?inches |
Height | 8?mm?/ 0.315?inches | Height from the surface | 5.6?mm?/ 0.22?inches |
Depth | 15.2?mm?/ 0.598?inches | Solder pin length | 2.4mm |
Solder pin dimensions | 1.2 x 0.35?mm | Plated through-hole diameter (THR) | 1.5(+0.1)mm |
Reel diameter of tape-and-reel packaging | 330mm | Tape width | 24mm |
PCB contact | THR | Solder pin arrangement | Over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Tin |
Weight | 0.5g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5760?(640)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4055143274715 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 17.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Solid conductor | 0.25 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.5 … 0.75?mm2 |
Strip length | 7 … 10?mm?/ 0.28 … 0.39?inches | Conductor connection direction to PCB | 0° |
Number of poles | 1 |
Specifications may be subject to change without notice
