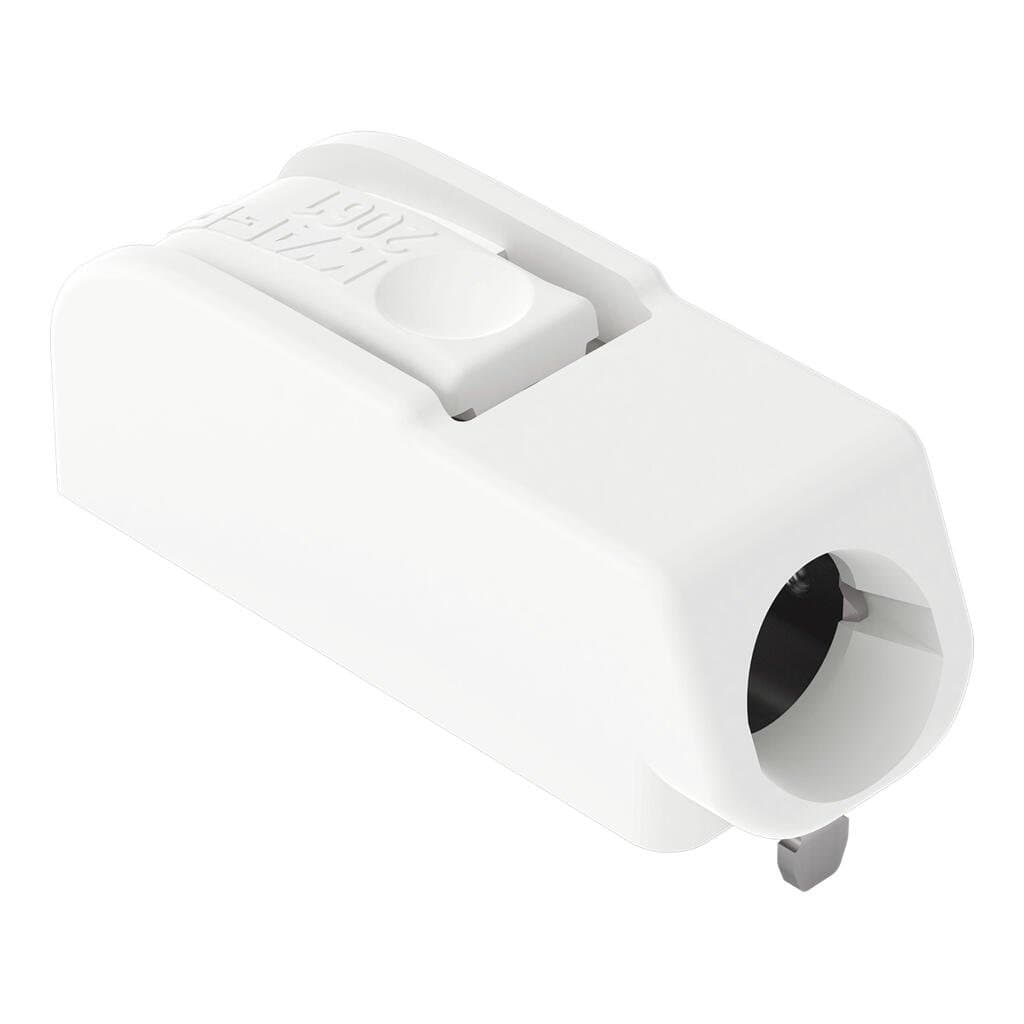

Product Model
2061-1641/998-404
Selling Points
- 1Push-button design simplifies conductor insertion and removal.
- 2Push-in CAGE CLAMP ensures secure and reliable connections.
- 3Available in tape-and-reel packaging for automated assembly.
- 4Suitable for wave soldering and various industrial applications.
- 5High-quality polyphthalamide (PPA GF) insulation for safety and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 6?mm?/ 0.24?inches | Width | 5.7?mm?/ 0.224?inches |
Height | 7.1?mm?/ 0.28?inches | Height from the surface | 5.6?mm?/ 0.22?inches |
Depth | 15.2?mm?/ 0.598?inches | Solder pin length | 1.5mm |
Solder pin dimensions | 1.2 x 0.35?mm | Plated through-hole diameter (THR) | 1.5(+0.1)mm |
Reel diameter of tape-and-reel packaging | 330mm | Tape width | 24mm |
PCB contact | THR | Solder pin arrangement | Over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Tin |
Fire load | 0.014MJ | Weight | 1.1g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5760?(640)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143274722 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.25 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 0.75?mm2 | Strip length | 7 … 10?mm?/ 0.28 … 0.39?inches |
Conductor connection direction to PCB | 0° | Number of poles | 1 |
Specifications may be subject to change without notice
