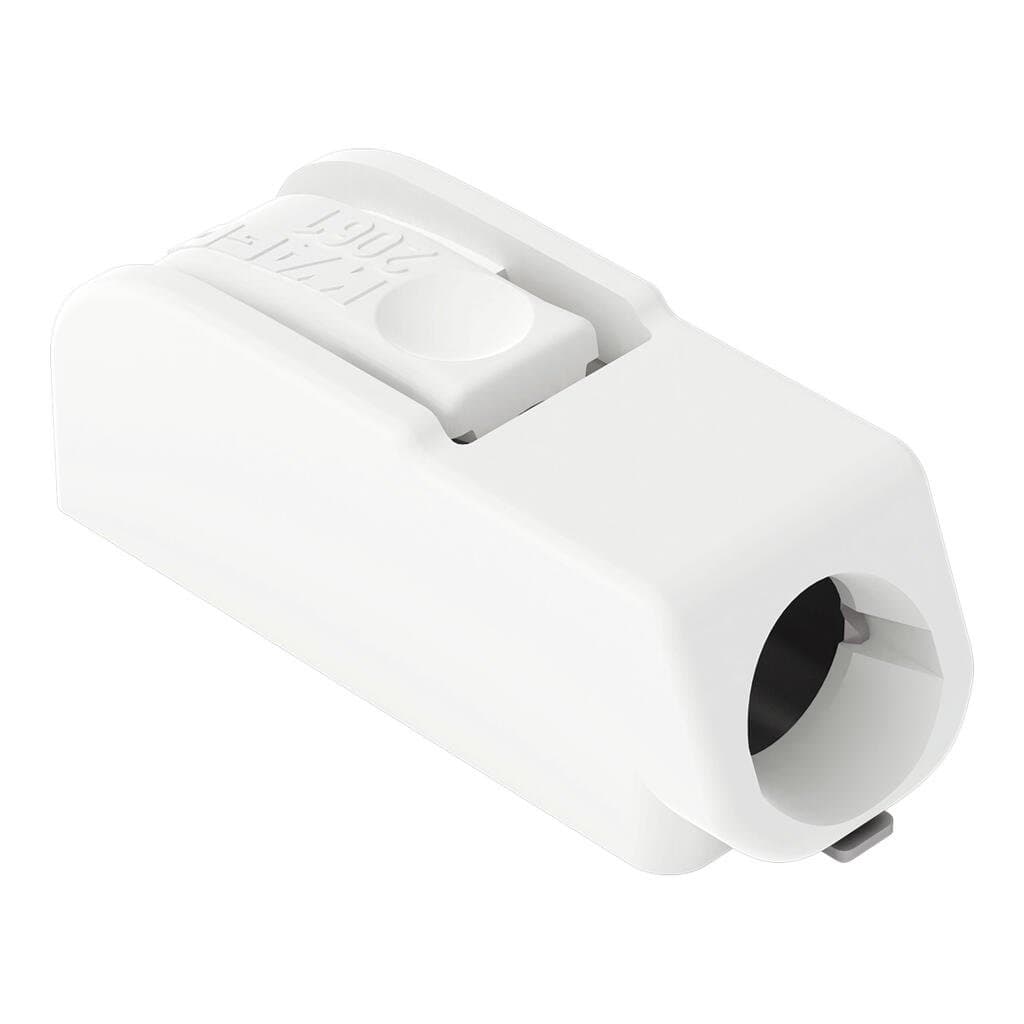

Product Model
2061-601/998-404
Selling Points
- 1Compact Design: Minimizes on-board shadowing for uniform light distribution.
- 2Easy Connection: Push-button design for direct power system feed-in and easy conductor removal.
- 3High Current Rating: Supports up to 17.5A current, suitable for various industrial applications.
- 4Surface Mount: Designed for right-angle surface mounting on PCBs, reducing installation complexity.
- 5Automated Assembly: Compatible with automated pick-and-place assembly systems, enhancing efficiency in production processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thickness; Pattern layout identical to solder pad layout |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 6?mm?/ 0.24?inches | Width | 5.7?mm?/ 0.224?inches |
Height | 5.6?mm?/ 0.22?inches | Height from the surface | 5.6?mm?/ 0.22?inches |
Depth | 15.8?mm?/ 0.622?inches | Reel diameter of tape-and-reel packaging | 330mm |
Tape width | 24mm | PCB contact | SMD |
Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.014MJ |
Weight | 0.5g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 8100?(900)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4055143278065 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 17.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Solid conductor | 0.25 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.5 … 0.75?mm2 |
Strip length | 7 … 10?mm?/ 0.28 … 0.39?inches | Conductor connection direction to PCB | 0° |
Number of poles | 1 |
Specifications may be subject to change without notice
