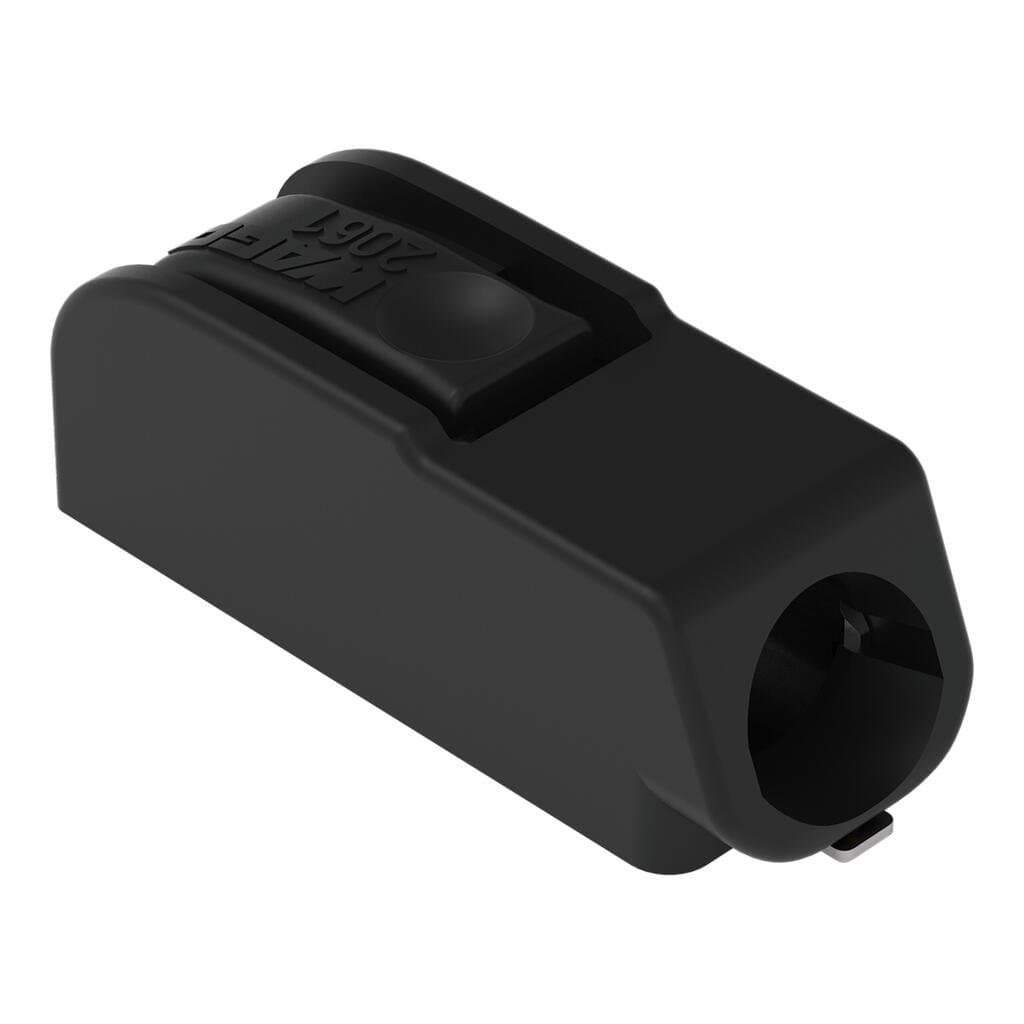

Product Model
2061-621/998-404
Selling Points
- 1Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature.
- 2Easy insertion and removal of conductors via push-in termination.
- 3Available in tape-and-reel packaging for automated assembly.
- 4Just 5.6 mm tall, making it ideal for space-constrained applications.
- 5Compatible with solid and ferruled conductors, including fine-stranded conductors up to 1.5 mm².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thickness; Pattern layout identical to solder pad layout |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 6?mm?/ 0.24?inches | Width | 5.7?mm?/ 0.224?inches |
Height | 5.6?mm?/ 0.22?inches | Height from the surface | 5.6?mm?/ 0.22?inches |
Depth | 15.8?mm?/ 0.622?inches | Reel diameter of tape-and-reel packaging | 330mm |
Tape width | 24mm | PCB contact | SMD |
Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Copper alloy |
Contact plating | Tin | Weight | 0.5g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 8100?(900)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143251129 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.25 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 0.75?mm2 | Strip length | 7 … 10?mm?/ 0.28 … 0.39?inches |
Conductor connection direction to PCB | 0° | Number of poles | 1 |
