Product Model
2065-101/998-403
Selling Points

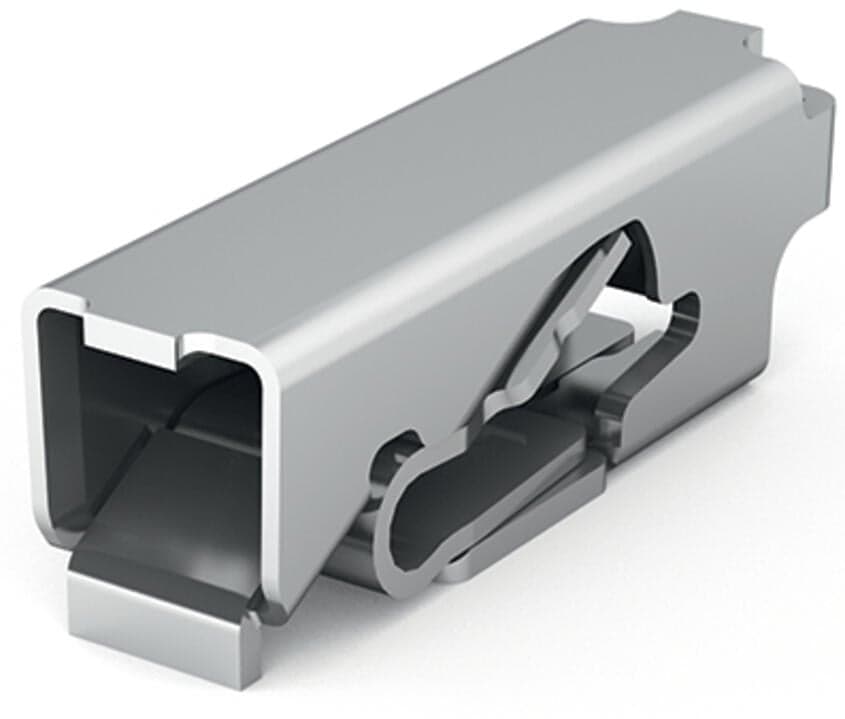

- 1The WAGO 2065-101/998-403 SMD PCB terminal block is designed for compact device connections, making it perfect for space-constrained applications.
- 2Equipped with PUSH WIRE technology, this terminal block ensures secure and reliable connections with solid conductors.
- 3Supports a conductor range of 0.75 mm², suitable for various electrical needs.
- 4Available in tape-and-reel packaging for easy installation and reduced labor costs.
- 5Meets IEC/EN 60664-1 standards, ensuring high reliability and safety in electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice:Terminal block without insulation housing! Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application. | Note | The ratings are based on an example pin spacing of 6 mm.The layout must meet the requirements of the insulation coordination standard EN/IEC 60664-1 and applicable end product standards. |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 6?mm?/ 0.236?inches | Width | 2.3?mm?/ 0.091?inches |
Height | 2.7?mm?/ 0.106?inches | Depth | 8?mm?/ 0.315?inches |
Reel diameter of tape-and-reel packaging | 330mm | Tape width | 16mm |
PCB contact | SMD | Solder pin arrangement | Over the entire terminal strip (in-line) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | silver-colored | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper alloy | Contact plating | Tin |
Weight | 0.1g | Limit temperature range | -60 … +120?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 31800?(2650)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4055143665438 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 9A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 9A | Connection technology | PUSH WIRE? |
Actuation type | Push-in | Solid conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG |
Strip length | 7.5 … 9.5?mm?/ 0.3 … 0.37?inches | Conductor connection direction to PCB | 0° |
Number of poles | 1 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
