Product Model

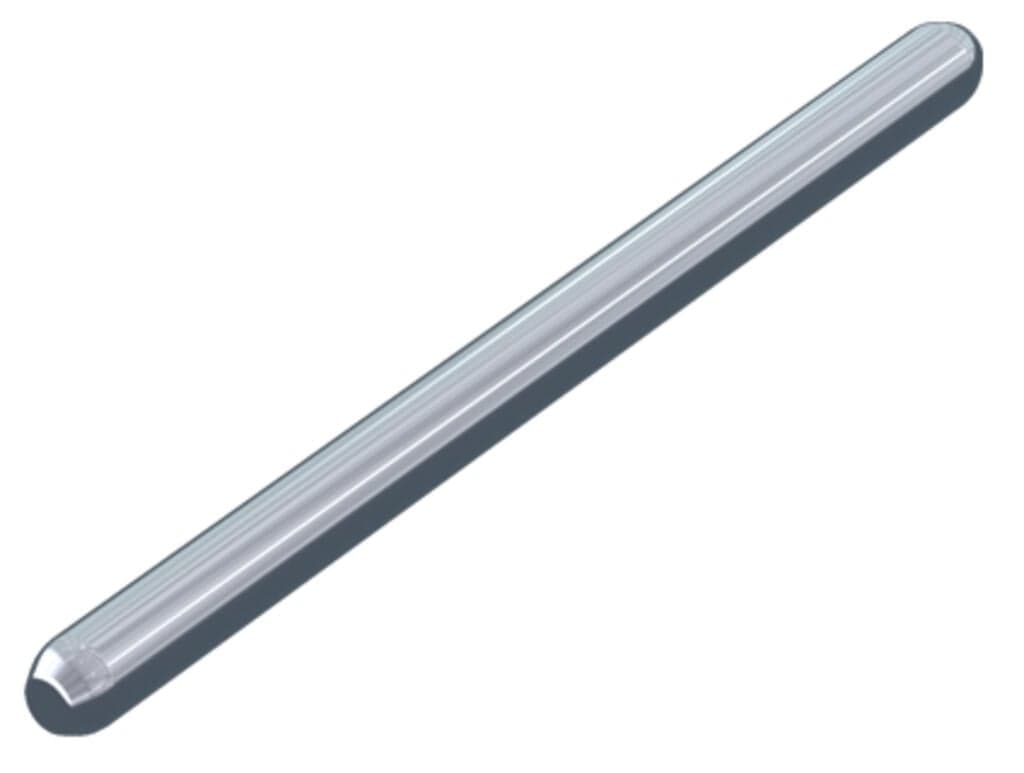

2065-133
Selling Points
- 1Silver-colored contacts ensure reliable electrical connections.
- 2Simplifies in-line assembly of LED modules and PCBs with a 6.5 mm pin spacing.
- 3Rated for 10 mating cycles, ensuring long-lasting performance in various applications.
- 4Meets insulation coordination standards (EN/IEC 60664-1) and overvoltage categories (III/2 and III/3).
- 5Designed for easy insertion into terminal blocks on adjoining PCBs, reducing assembly time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice:Terminal block without insulation housing! Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application. | Note | The layout must meet the requirements of the insulation coordination standard EN/IEC 60664-1 and applicable end product standards. When using board-to-board links, please note the potentially reduced clearances (e.g., with metal core boards). |
Depth | 17.6?mm?/ 0.693?inches | Length | 17.6mm |
Diameter | 1mm | Mating cycles (max.) | 10 |
Number of mating cycles | 10 connections/disconnections (max.) | Suitable | for SMD PCB terminal blocks; 2065 Series |
Note (material data) | Information on material specifications can be found here | Color | silver-colored |
Contact material | Copper alloy | Contact plating | Silver |
Weight | 0.1g | Limit temperature range | -60 … +120?°C |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1500?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143862738 | Customs tariff number | 8536908585 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 9A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Specifications may be subject to change without notice
