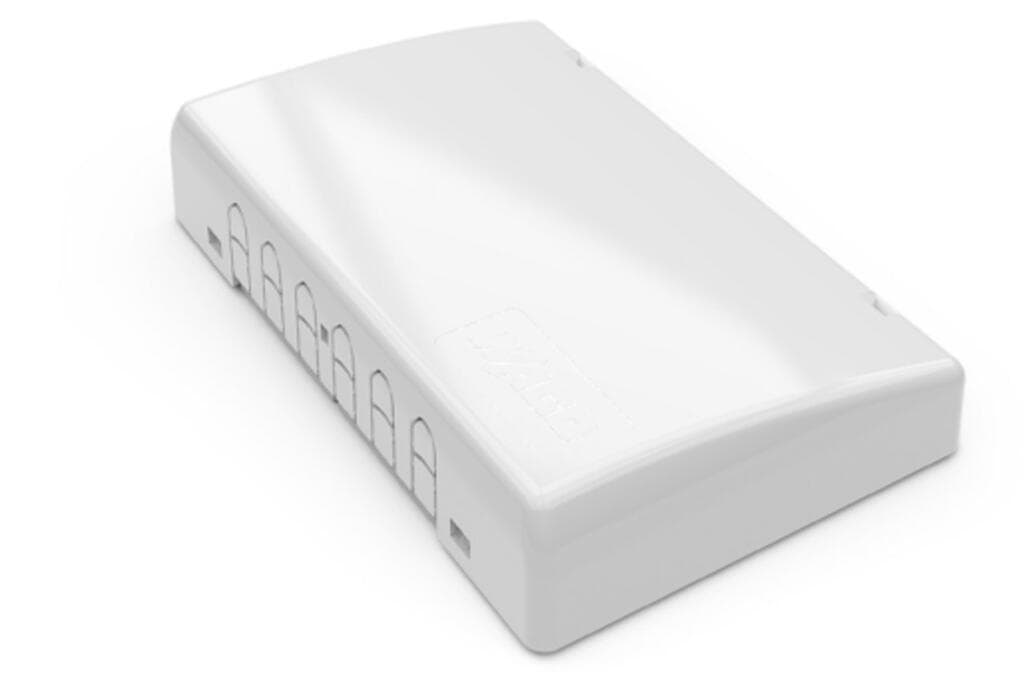

Product Model
207-4301
Selling Points
- 1Simple and Quick Connection: Connects up to 60 conductors with ease.
- 2High-Quality Material: Made from durable polycarbonate for long-lasting use.
- 3Clear Arrangement: Structured design ensures secure and organized cable management.
- 4IP20 Protection: Offers protection against solid particles and water spray.
- 5Easy Installation: Snap-on cover and easy mounting of connectors for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 225?mm?/ 8.858?inches | Height from the surface | 46 mm / 1.811 inches |
Depth | 145?mm?/ 5.709?inches | Protection type | IP20 |
Note (material data) | Information on material specifications can be found here | Color | white |
Cover color | white | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V0 | Weight | 422.7g |
Ambient temperature (operation) | -25 … +85 °C | Ambient temperature (storage) | -25 … +85 °C |
ETIM 9.0 | EC001170 | ETIM 8.0 | EC001170 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4055144019247 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
