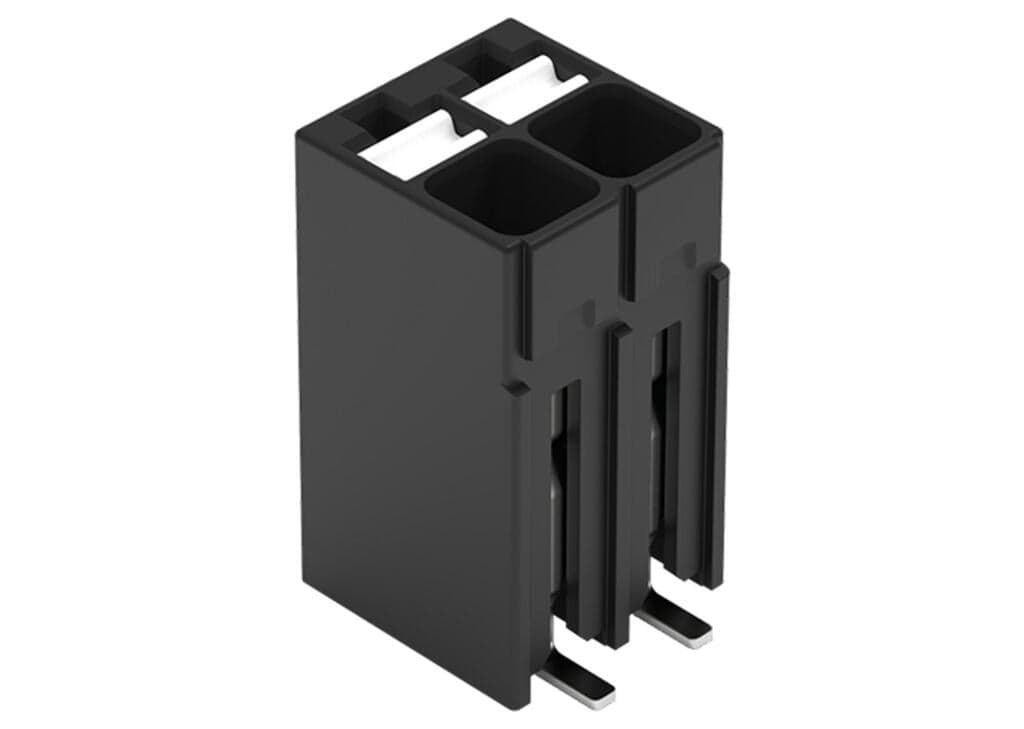

Product Model
2086-1102/700-000/997-604
Selling Points
- 13.5mm pin spacing for efficient PCB layout.
- 2Push-in CAGE CLAMP ensures secure terminal block connections.
- 310A current rating for heavy-duty applications.
- 4Operates from -60°C to +105°C for versatile use.
- 5Meets environmental standards with tin electrolytic copper construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 2 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 7.7?mm?/ 0.303?inches | Height | 13.85?mm?/ 0.545?inches |
Depth | 7.8?mm?/ 0.307?inches | Reel diameter of tape-and-reel packaging | 380mm |
Tape width | 24mm | PCB contact | SMD |
Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.035MJ | Weight | 2.6g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 2430?(270)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4066966160017 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 14A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 14A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 14A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.14 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Conductor connection direction to PCB | 90° | Number of poles | 2 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
