Product Model

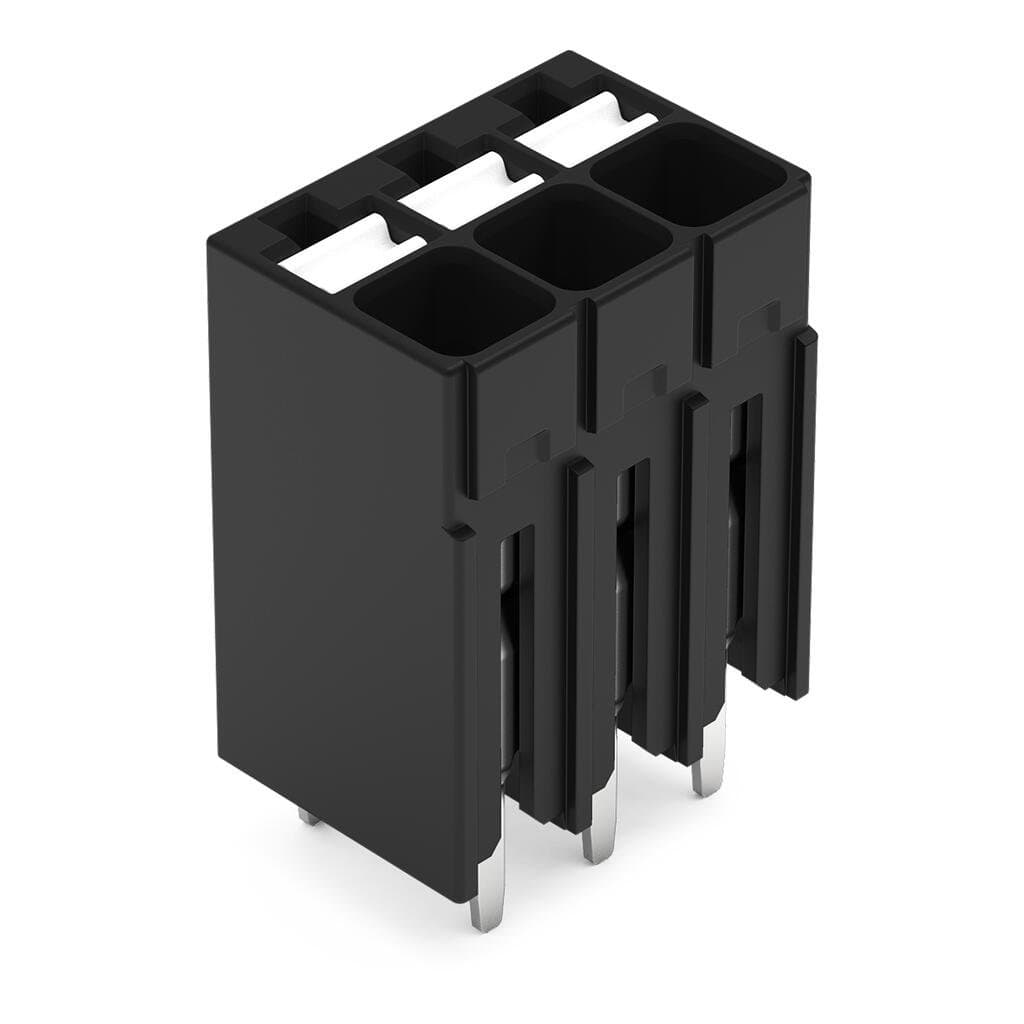

2086-1103
Selling Points
- 1Compact Design: 3.5mm pitch for efficient board space usage.
- 2Versatile Wiring: Compatible with 24-16 AWG wires for broad application range.
- 3High Current Rating: Supports up to 17.5A, ensuring reliable power distribution.
- 4Easy Installation: Push-in connection method simplifies wiring process.
- 5Compliance Ready: RoHS compliant and free from SVHC substances, meeting environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 11.2?mm?/ 0.441?inches | Height | 16?mm?/ 0.63?inches |
Height from the surface | 13.6?mm?/ 0.535?inches | Depth | 7.8?mm?/ 0.307?inches |
Solder pin length | 2.4mm | Solder pin dimensions | 0.3 x 0.8?mm |
Plated through-hole diameter (THR) | 1(+0.1)mm | Suitable | suitable for Single Pair Ethernet (SPE) |
PCB contact | THR | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.041MJ |
Weight | 1.5g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 288?pcs | Packaging type | Box |
Country of origin | CH | GTIN | 4066966001624 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 17.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 14A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 14A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 14A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Solid conductor | 0.14 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Conductor connection direction to PCB | 90° |
Number of poles | 3 |
