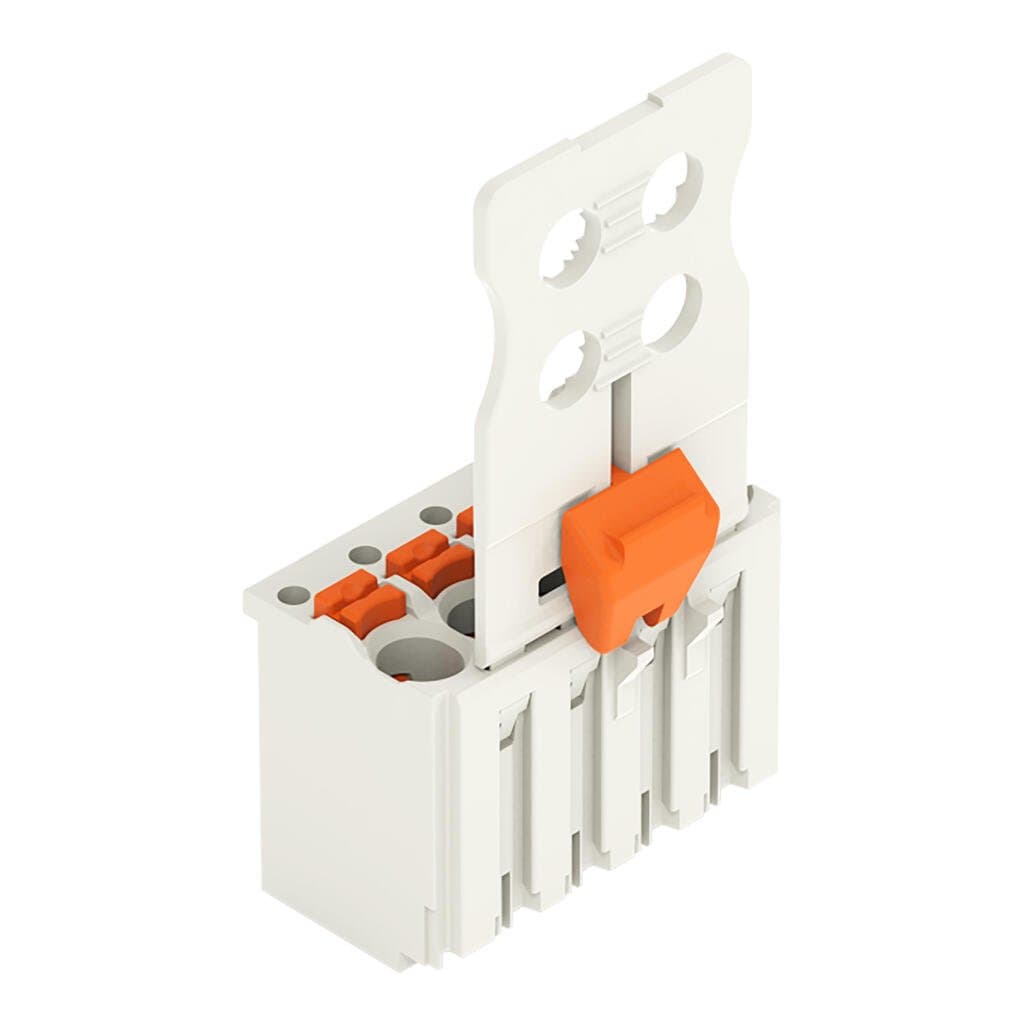

Product Model
2091-1105/002-000
Selling Points
- 1Universal Connection: Connects all conductor types, including solid and fine-stranded conductors.
- 2Easy Termination: Simple push-in termination without special tools required.
- 3Gripping Plate Release: Includes a gripping plate with sliding connector release for easy handling.
- 4Mismating Protection: Designed with integrated locking latches to prevent accidental disconnection.
- 5Compliant with DIN EN 61984: Meets safety standards for connectors without breaking capacity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
Variants: | Direct marking | Clamping units | 5 |
Total number of potentials | 5 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 17.5?mm?/ 0.689?inches | Height | 34?mm?/ 1.339?inches |
Depth | 12.4?mm?/ 0.488?inches | Variable coding | Yes |
Design | With gripping plate and sliding connector release | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.018MJ |
Weight | 2.4g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821411659 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.2 … 1.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 5 |
Specifications may be subject to change without notice
