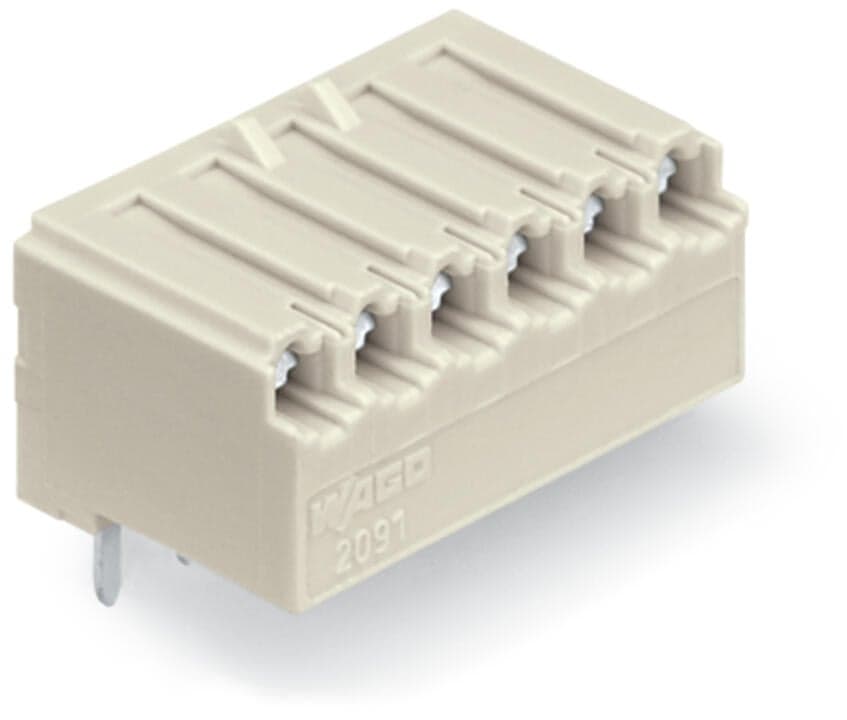

Product Model
2091-1326
Selling Points
- 1Engineered for demanding industrial environments, ensuring consistent performance and durability.
- 2Quick and straightforward installation process, minimizing downtime and reducing installation costs.
- 3Compatible with a wide range of applications, including automation, control systems, and more.
- 4Constructed with high-quality materials to withstand harsh conditions and maintain connectivity over time.
- 5Designed with safety in mind, featuring secure connections that prevent electrical shocks and ensure operator safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Total number of potentials | 6 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 21?mm?/ 0.827?inches |
Height | 15.2?mm?/ 0.598?inches | Height from the surface | 11.6?mm?/ 0.457?inches |
Depth | 13?mm?/ 0.512?inches | Solder pin length | 3.6mm |
Solder pin dimensions | 0.4 x 0.9?mm | Drilled hole diameter with tolerance | 1.1(+0.1)mm |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female header | Connector (connection type) | for PCB |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Mating direction to the PCB | 0° | Locking of plug-in connection | none |
PCB contact | THT | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Tin |
Fire load | 0.075MJ | Weight | 3.2g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
Product Group | 26 (picoMAX Connectors) | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821160892 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Number of poles | 6 |
Specifications may be subject to change without notice
