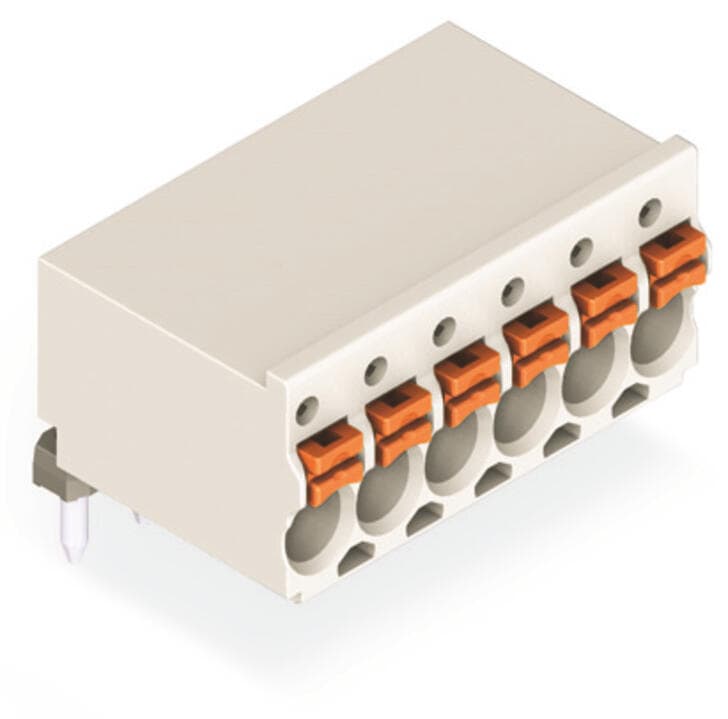

Product Model
2091-1376
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 2Easy Installation: Simple push-in termination with Push-in CAGE CLAMP technology.
- 3Universal Compatibility: Suitable for all conductor types, including solid and ferruled conductors.
- 4Efficient Connectivity: Provides seamless integration and reliable connections in various applications.
- 5Rohs Compliant: Meets international standards for environmental sustainability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
Clamping units | 6 | Total number of potentials | 6 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 21?mm?/ 0.827?inches |
Height | 11.4?mm?/ 0.449?inches | Depth | 14?mm?/ 0.551?inches |
Solder pin length | 3.6mm | Solder pin diameter | 1mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | No |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
Locking of plug-in connection | none | PCB contact | THT |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.064MJ | Weight | 3.3g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
Product Group | 26 (picoMAX Connectors) | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821162902 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.2 … 1.5?mm2?/ 24 … 14?AWG |
Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Conductor connection direction to PCB | 0° | Number of poles | 6 |
Specifications may be subject to change without notice
