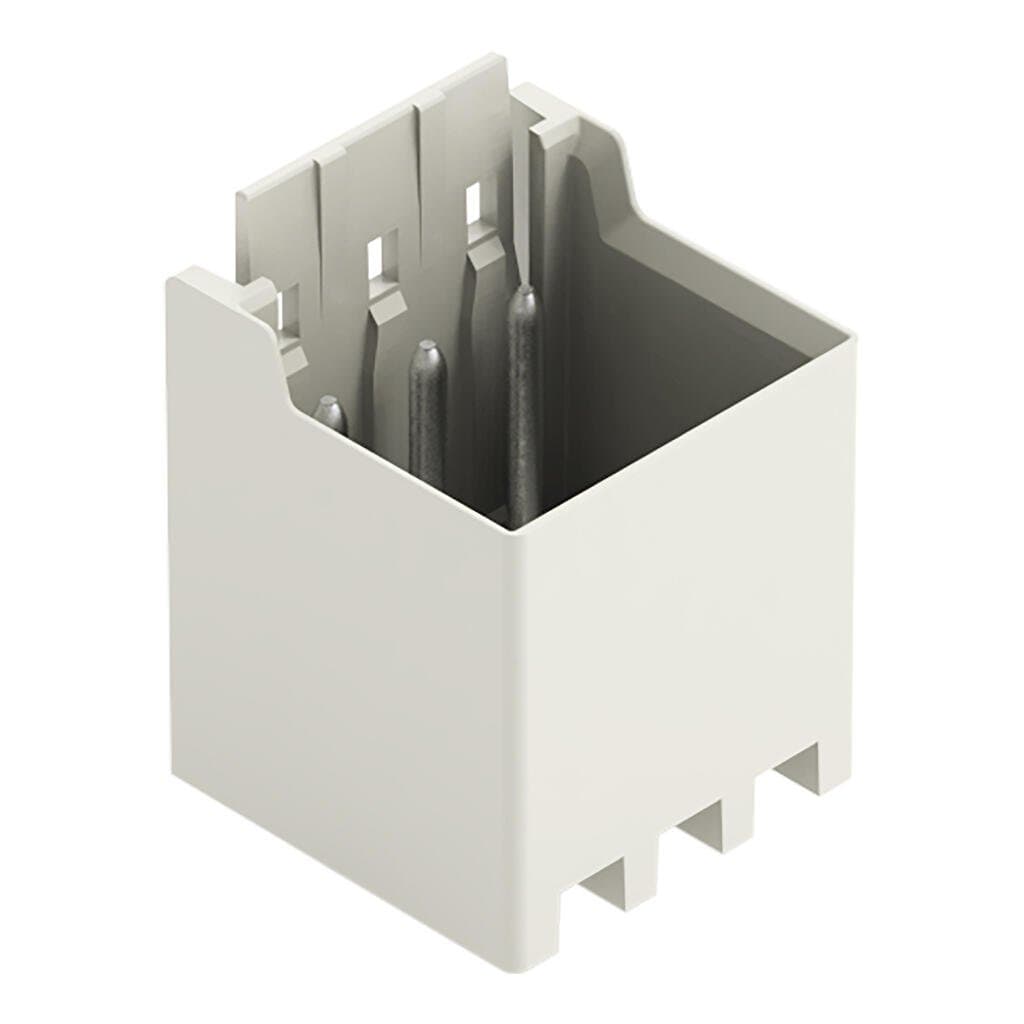

Product Model
2091-1403/200-000
Selling Points
- 1High-performance connectivity for complex control systems.
- 2Robust design ensures long-lasting reliability in harsh environments.
- 3Ideal for industrial automation applications requiring precise control.
- 4Supports a wide range of communication protocols for seamless integration.
- 5Compact size with high-density terminal blocks for efficient use of space.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 12.5?mm?/ 0.492?inches | Height | 19.9?mm?/ 0.783?inches |
Height from the surface | 17.5?mm?/ 0.689?inches | Depth | 12.4?mm?/ 0.488?inches |
Solder pin length | 2.4mm | Solder pin diameter | 1mm |
Plated through-hole diameter (THR) | 1.2(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
Locking of plug-in connection | Locking latch | PCB contact | THR |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.026MJ |
Weight | 1.1g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821396109 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Number of poles | 3 |
Specifications may be subject to change without notice
