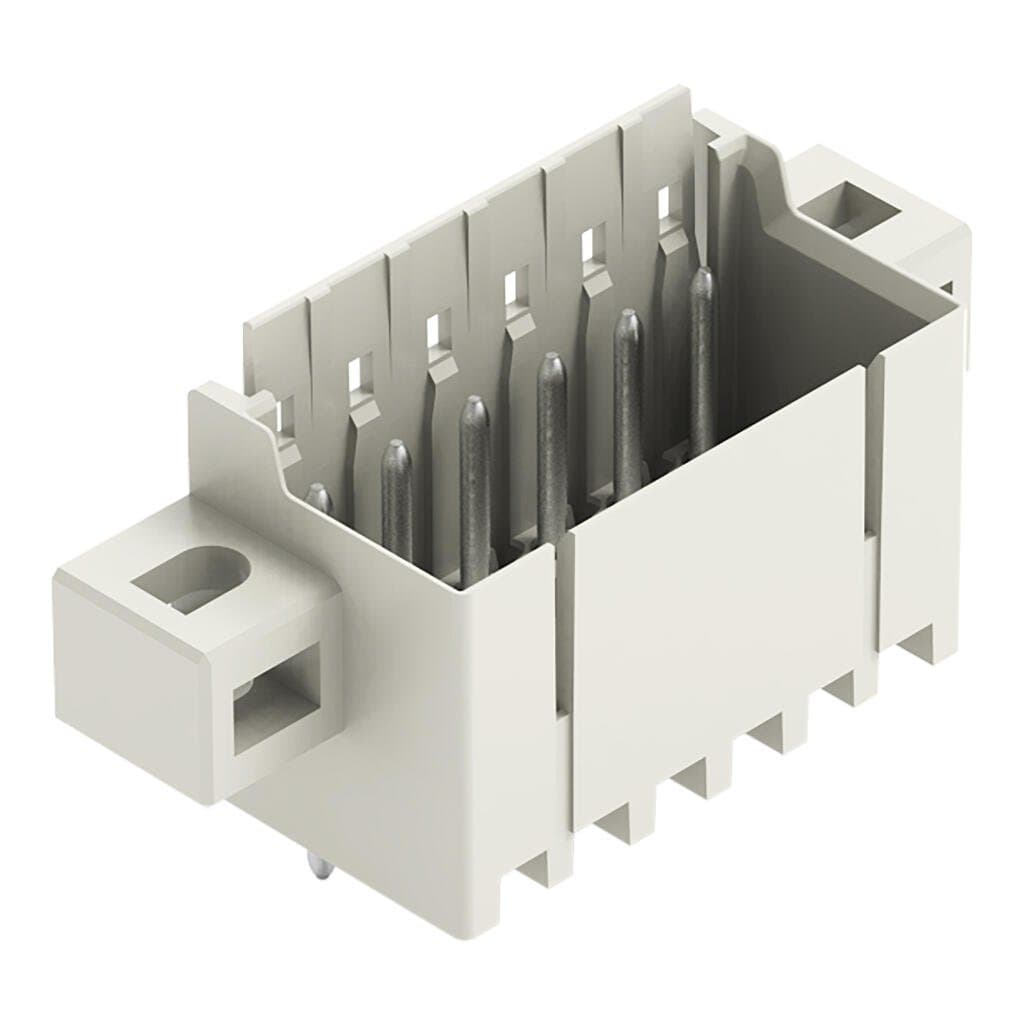

Product Model
2091-1406/005-000
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 2Easy Assembly: Female connectors can be assembled without losing poles, allowing for versatile configurations.
- 3Compact Design: 6-position terminal block with a pin spacing of 3.5 mm, perfect for tight spaces.
- 4Versatile Use: Suitable for various electronic applications, including PCB mounting and circuitry.
- 5Durable Contacts: Made with tin-plated contacts for reliable connections and high current capacity up to 10A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
Total number of potentials | 6 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 35?mm?/ 1.378?inches | Height | 21.1?mm?/ 0.831?inches |
Height from the surface | 17.5?mm?/ 0.689?inches | Depth | 12.4?mm?/ 0.488?inches |
Solder pin length | 3.6mm | Solder pin diameter | 1mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | Yes |
Mounting type | Feed-through mounting | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Mating direction to the PCB | 90° | Locking of plug-in connection | Locking latch |
PCB contact | THT | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.06MJ | Weight | 2.6g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821411987 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Number of poles | 6 |
