Product Model

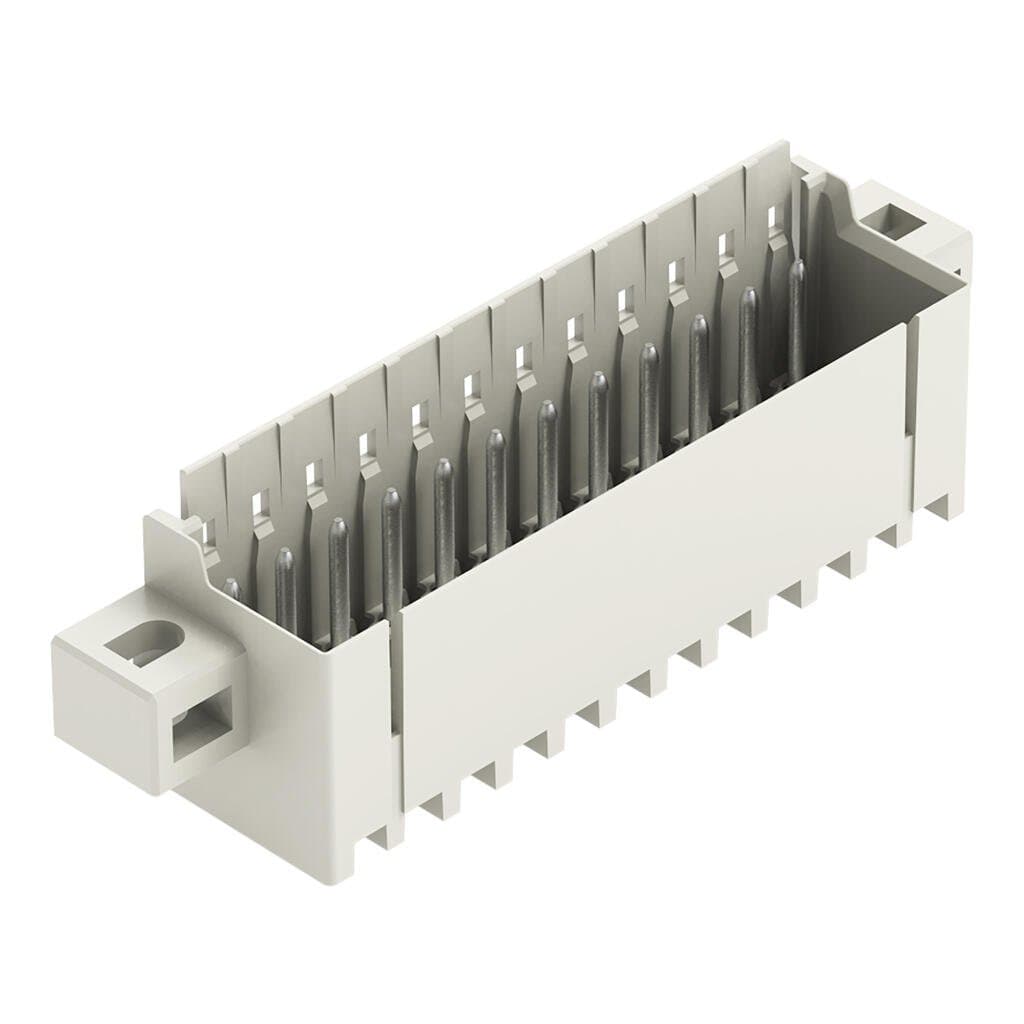

2091-1412/205-000
Selling Points
- 1High-Quality Construction: Built with durable materials for long-lasting performance.
- 2Efficient Connectivity: Ensures secure and stable connections in various applications.
- 312-Pole Configuration: Ideal for dividing functions within one male header.
- 41.0 mm Solder Pin: Straight and light gray, suitable for PCB terminal blocks.
- 5Easy Installation: Compatible with other WAGO products, simplifying integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
Total number of potentials | 12 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 44?mm?/ 1.732?inches | Height | 19.9?mm?/ 0.783?inches |
Height from the surface | 17.5?mm?/ 0.689?inches | Depth | 12.4?mm?/ 0.488?inches |
Solder pin length | 2.4mm | Solder pin diameter | 1mm |
Plated through-hole diameter (THR) | 1.2(+0.1)mm | Variable coding | Yes |
Mounting type | Feed-through mounting | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Mating direction to the PCB | 90° | Locking of plug-in connection | Locking latch |
PCB contact | THR | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.095MJ | Weight | 4.3g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821412113 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Number of poles | 12 |
Specifications may be subject to change without notice
