Product Model

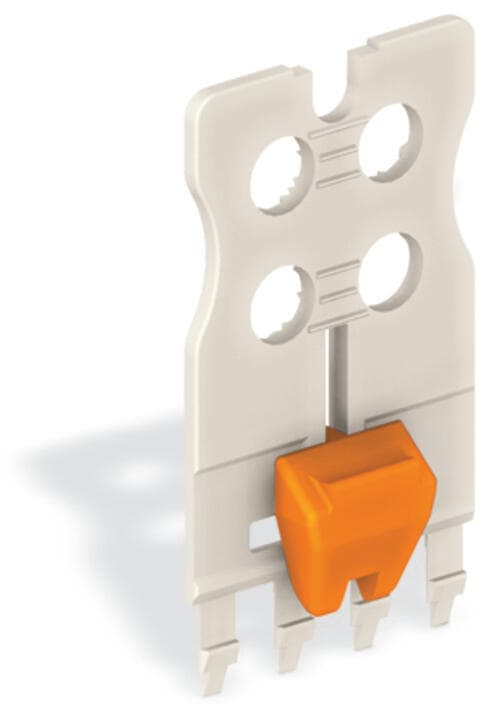

2091-1602/002-000
Selling Points
- 1Secure Connector Release: The WAGO 2091-1602/002-000 features a sliding connector release for easy disconnection.
- 23.5 mm Pin Spacing: Compatible with a wide range of connectors, ensuring precise and reliable connections.
- 3Light Gray Color: Durable and easy to identify, the light gray color enhances visibility in various environments.
- 4High-Temperature Resistance: Designed to operate within a temperature range of -60°C to +100°C, making it suitable for diverse applications.
- 5Compliant with Safety Standards: Meets UL94 V0 flammability class and IEC/EN 60664-1 overvoltage category III, ensuring safety in electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 13 mm |
Design | with sliding connector release | Note (material data) | Information on material specifications can be found here |
Color | light gray | Flammability class per UL94 | V0 |
Fire load | 0.011MJ | Weight | 0.3g |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821437246 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
