Product Model
2091-1730
Selling Points

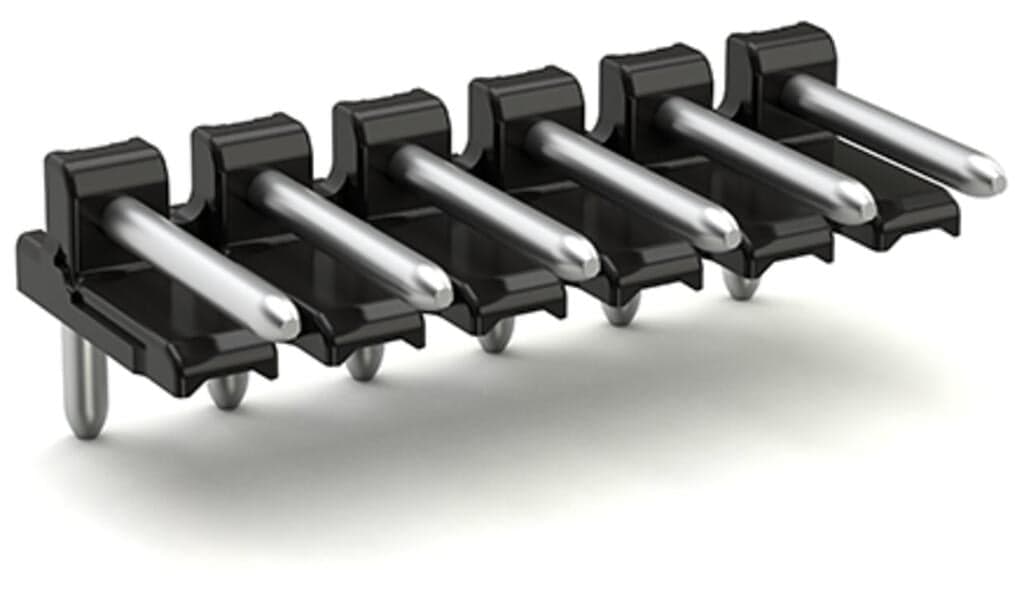

- 1High-Quality PCB Connector: Designed for reliable connectivity in industrial automation.
- 210-Pole Angled Header: Features 10 poles with an angled design for easy PCB mounting.
- 33.5mm Pin Spacing: Ensures precise and efficient connection with a 3.5mm pin spacing.
- 4Black Polyphthalamide Material: Made from durable black Polyphthalamide (PPA GF) with a flammability class of UL94 V0.
- 510A Rated Current: Operates with a rated current of 10A and a nominal voltage of 160V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 36.7?mm?/ 1.445?inches | Height | 7.1?mm?/ 0.28?inches |
Height from the surface | 3.5?mm?/ 0.138?inches | Depth | 10.2?mm?/ 0.402?inches |
Solder pin length | 3.6mm | Solder pin diameter | 1mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
Locking of plug-in connection | none | PCB contact | THT |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 1.4g |
Limit temperature range | -60 … +100?°C | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 300?pcs | Packaging type | bag |
Country of origin | CN | GTIN | 4055143935739 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 10 |
