Product Model

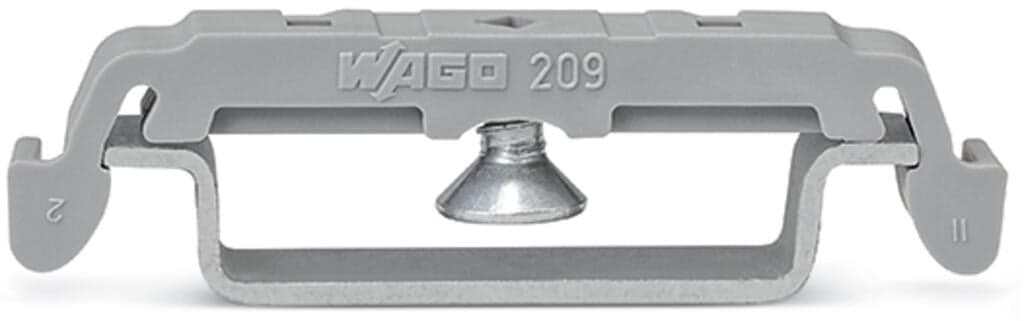

209-123
Selling Points
- 1DIN Rail Compatibility: Designed for mounting on TS35 DIN rail.
- 2Gray Color: Available in a durable gray finish.
- 36.4mm Width: Compact size fits perfectly on DIN rail terminals.
- 4Screw Mounting: Easy installation with a screw attachment.
- 5Polyamide Material: Made from high-quality polyamide for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | DIN-35 rail | Width | 6.4?mm?/ 0.252?inches |
Height | 42.3?mm?/ 1.665?inches | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.036MJ |
Weight | 1.8g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(25)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332269513 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
