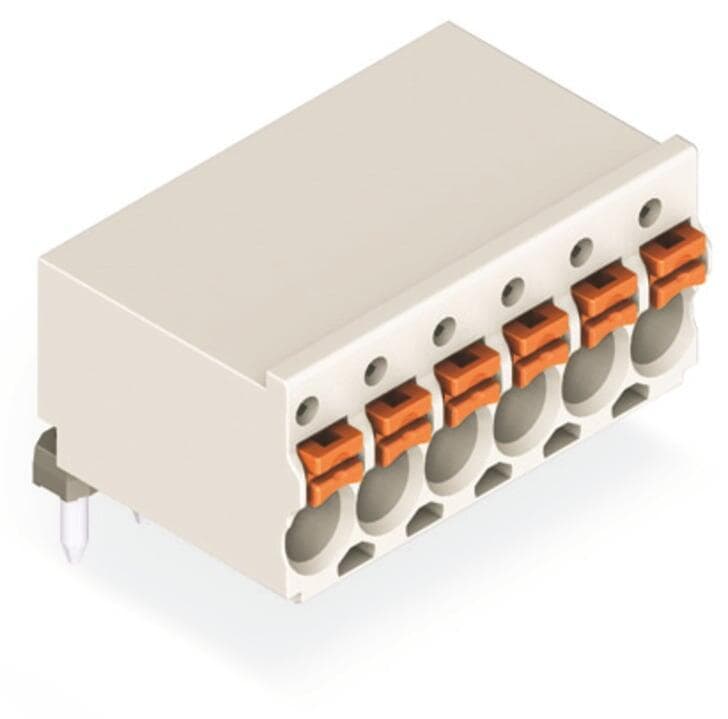

Product Model
2091-2372/200-000/997-404
Selling Points
- 1Seamlessly integrate with various systems using WAGO's proprietary connectors.
- 2Built to withstand harsh industrial environments with durable materials and construction.
- 3Streamline your operations with precise control and real-time monitoring capabilities.
- 4Easily expand or modify your setup as needed without compromising performance.
- 5Backed by WAGO's reputation for delivering high-quality, reliable products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5 mm / 0.138 inches | Width | 7 mm / 0.276 inches |
Height | 11.4 mm / 0.449 inches | Depth | 14 mm / 0.551 inches |
Solder pin length | 2.4mm | Solder pin diameter | 1mm |
Plated through-hole diameter (THR) | 1.2(+0.1)mm | Reel diameter of tape-and-reel packaging | 330mm |
Tape width | 24mm | Variable coding | No |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
Locking of plug-in connection | none | PCB contact | THR |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
Fire load | 4.2MJ | Weight | 1.6g |
Limit temperature range | -60 … +100 °C | Processing temperature | -35 … +60 °C |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200 pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966567335 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
Solid conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG | Fine-stranded conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5 mm2 |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Conductor connection direction to PCB | 0° |
Number of poles | 2 | Conductor connection direction to PCB 2 | 0° |
Specifications may be subject to change without notice
