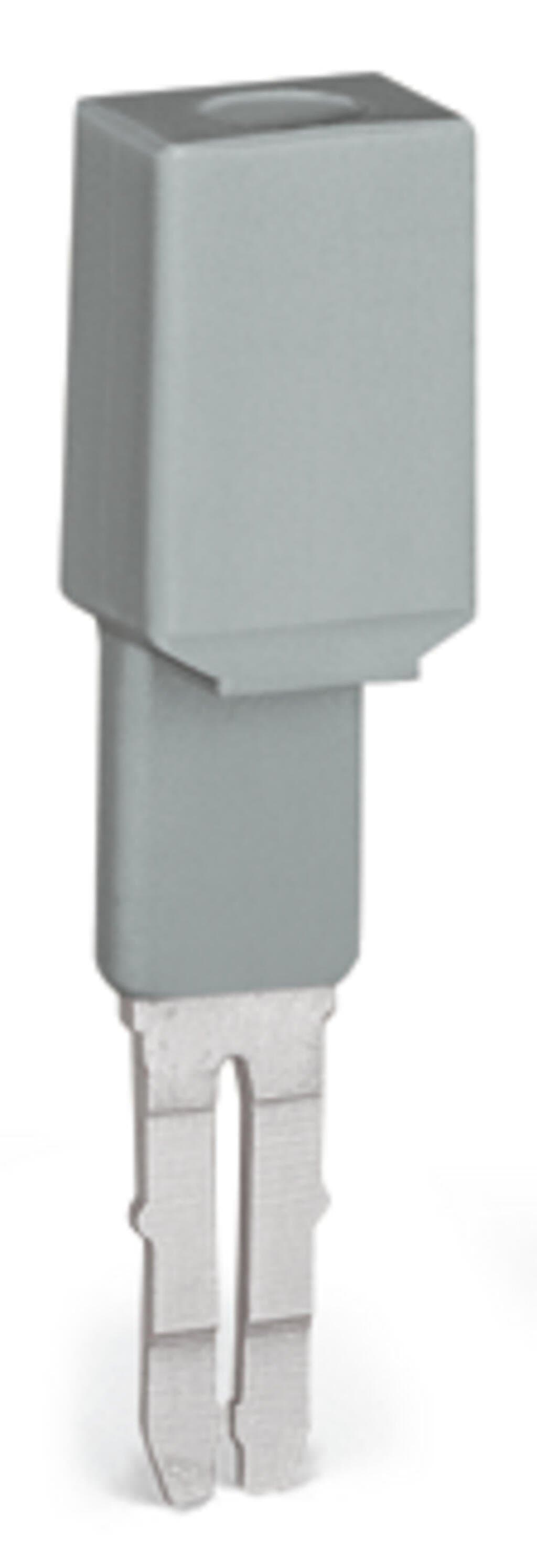

Product Model
209-170
Selling Points
- 1Designed for 4 mm Ø test plugs, ensuring a precise and secure connection.
- 2Suitable for 1.5 mm² to 10 mm² terminal blocks, accommodating various electrical needs.
- 3Made from high-quality materials, providing long-lasting reliability.
- 4Simple to install, reducing setup time and effort.
- 5Available in a gray finish, enhancing visibility and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 8.3?mm?/ 0.327?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.022MJ |
Weight | 3.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-44-03-13 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002255 | ETIM 8.0 | EC002255 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918308625 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
