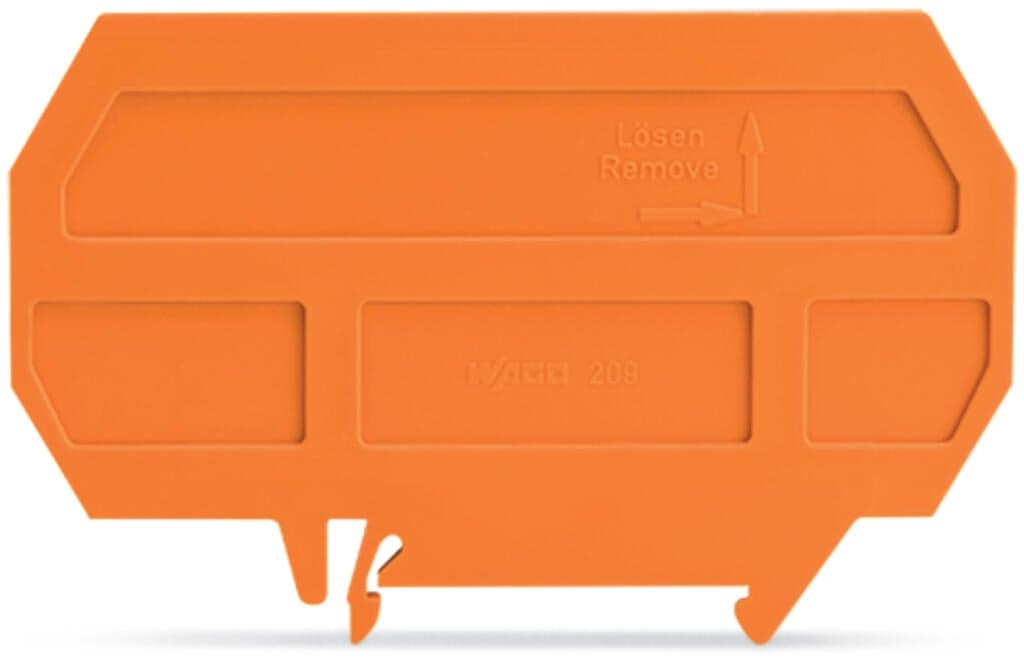

Product Model
209-190
Selling Points
- 1Made from high-quality materials for long-lasting performance.
- 2Simple mounting on DIN TS 35 rail for quick setup.
- 3Meets stringent safety standards for hazardous environments.
- 43 mm thick, 90 mm wide for efficient use in tight spaces.
- 5RoHS compliant and certified by DEKRA Certification B.V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 90?mm?/ 3.543?inches |
Depth from upper-edge of DIN-rail | 52?mm?/ 2.047?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.296MJ |
Weight | 9.5g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332241311 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
