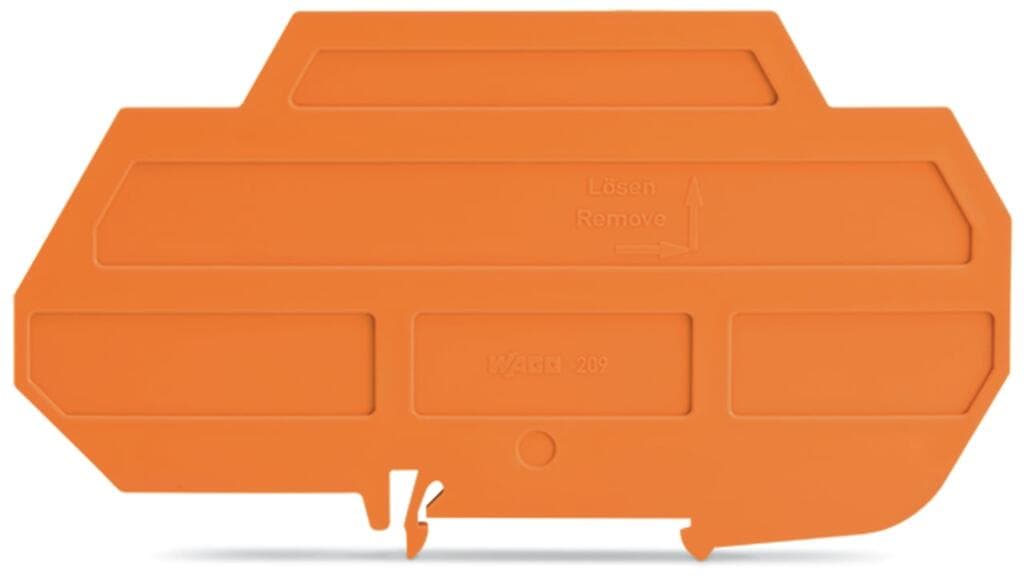

Product Model
209-192
Selling Points
- 1Made from high-quality polyamide for long-lasting performance.
- 23 mm thick and 125.5 mm wide, ideal for DIN Rail mounting.
- 3Meets stringent safety standards for Ex e/Ex i applications.
- 4Simple to integrate with existing systems due to its compact size.
- 5Available in bulk quantities, reducing overall cost per unit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 125.5?mm?/ 4.941?inches |
Depth from upper-edge of DIN-rail | 64?mm?/ 2.52?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.442MJ |
Weight | 15.7g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454654320 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
