Product Model

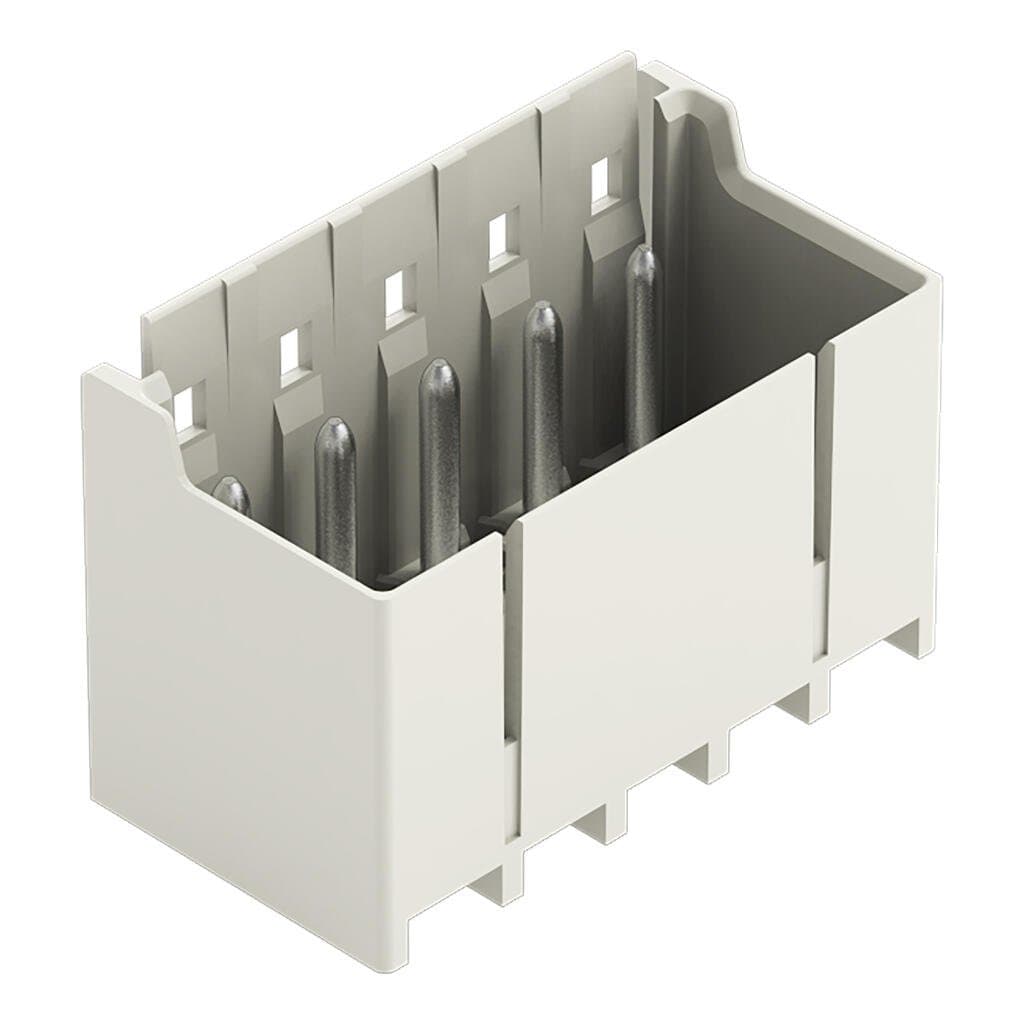

2092-1405/200-000
Selling Points
- 1Reliable Connectivity: Ensures secure and maintenance-free connections in industrial applications.
- 25-Pole Configuration: Suitable for various electrical and automation systems with a 5-pole setup.
- 31.4 mm Solder Pins: Features 1.4 mm Ø solder pins for efficient and durable connections.
- 4Light Gray Finish: Available in a light gray finish for easy identification and integration.
- 5Rohs Compliant: Meets RoHS compliance standards, ensuring environmental safety and regulatory adherence.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
Total number of potentials | 5 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
Width | 27.2?mm?/ 1.071?inches | Height | 21.9?mm?/ 0.862?inches |
Height from the surface | 19.5?mm?/ 0.768?inches | Depth | 14.4?mm?/ 0.567?inches |
Solder pin length | 2.4mm | Solder pin diameter | 1.4mm |
Plated through-hole diameter (THR) | 1.6(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
Locking of plug-in connection | Locking latch | PCB contact | THR |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.062MJ |
Weight | 3g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821390381 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Number of poles | 5 |
Specifications may be subject to change without notice
