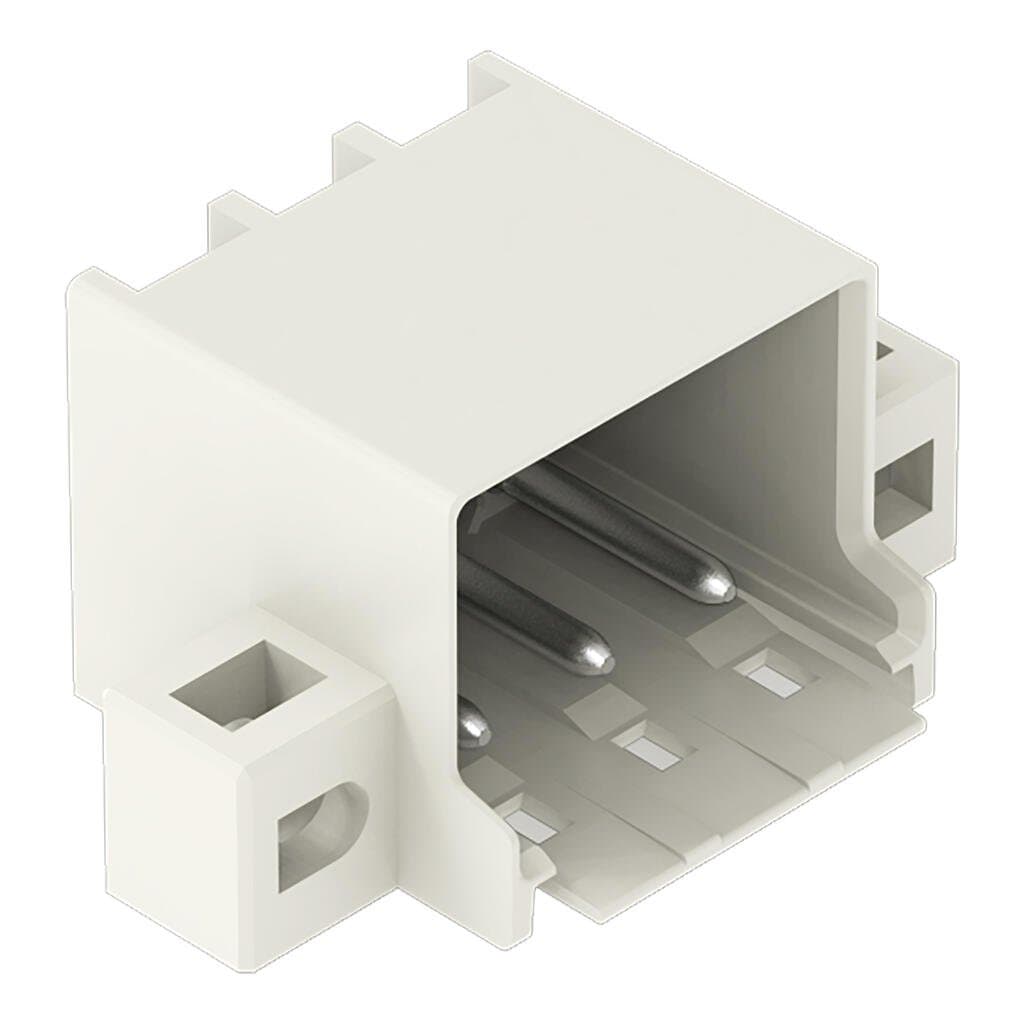

Product Model
2092-1423/205-000
Selling Points
- 1Angled Design for Easy Installation: The WAGO 2092-1423/205-000 THR male header is designed with an angled configuration for straightforward soldering.
- 23-Pole, 5 mm Pin Spacing: This header offers a 3-pole configuration with a pin spacing of 5 mm, ensuring precise and reliable connections.
- 3Light Gray Color for Visibility: The light gray color enhances visibility during assembly and use, reducing errors in the manufacturing process.
- 4Clamping Collar for Secure Fit: The clamping collar ensures a secure fit on PCBs, providing a stable connection that resists vibration and stress.
- 5UL 1059 Approved for Safety: Meets UL 1059 standards, ensuring the component is safe for use in electrical and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
Width | 29.2?mm?/ 1.15?inches | Height | 16.8?mm?/ 0.661?inches |
Height from the surface | 14.4?mm?/ 0.567?inches | Depth | 19.5?mm?/ 0.768?inches |
Solder pin length | 2.4mm | Solder pin diameter | 1.4mm |
Plated through-hole diameter (THR) | 1.6(+0.1)mm | Variable coding | Yes |
Mounting type | Feed-through mounting | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Mating direction to the PCB | 0° | Locking of plug-in connection | Locking latch |
PCB contact | THR | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.058MJ | Weight | 2.5g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821395829 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Number of poles | 3 |
