Product Model

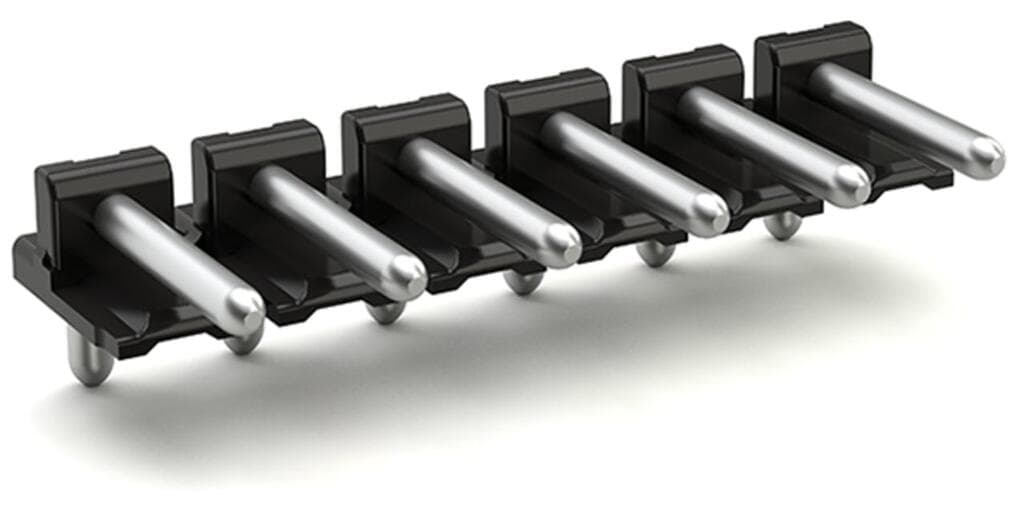

2092-1725
Selling Points
- 1High-reliability connectivity for critical applications.
- 2Easy installation with minimal setup time.
- 3Robust performance in harsh environments.
- 4Compact design for space-saving installations.
- 5Compatible with a wide range of industrial protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
Width | 28.2?mm?/ 1.110?inches | Height | 7.6?mm?/ 0.299?inches |
Height from the surface | 4?mm?/ 0.157?inches | Depth | 12.3?mm?/ 0.484?inches |
Solder pin length | 3.6mm | Solder pin diameter | 1.4mm |
Drilled hole diameter with tolerance | 1.6(+0.1)mm | Variable coding | No |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
Locking of plug-in connection | none | PCB contact | THT |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 1.4g |
Limit temperature range | -60 … +100?°C | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 300?pcs | Packaging type | bag |
Country of origin | CN | GTIN | 4055143935036 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 5 |
Specifications may be subject to change without notice
