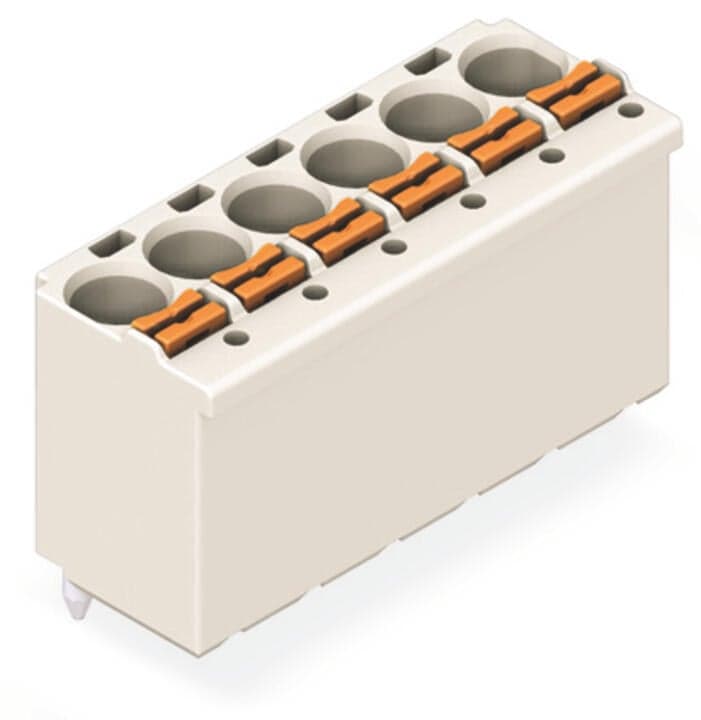

Product Model
2092-2176/200-000/997-407
Selling Points
- 1Reliable Electrical Connections: Ensures consistent and secure connections with its Push-in CAGE CLAMP technology.
- 2High-Quality Contacts: Features silver-plated contacts for optimal conductivity and durability.
- 3Efficient Design: Compact design with a 5 mm pin spacing, ideal for space-constrained applications.
- 4Versatile Use: Suitable for various industrial and automation systems, including I/O systems and terminal blocks.
- 5Durable Construction: Constructed with robust materials to withstand heavy use and harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
Clamping units | 6 | Total number of potentials | 6 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5 mm / 0.197 inches | Width | 30 mm / 1.181 inches |
Height | 16.2 mm / 0.638 inches | Depth | 13.4 mm / 0.528 inches |
Solder pin length | 2.4mm | Solder pin diameter | 1.4mm |
Plated through-hole diameter (THR) | 1.6(+0.1)mm | Reel diameter of tape-and-reel packaging | 330mm |
Tape width | 56mm | Variable coding | No |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
Locking of plug-in connection | none | PCB contact | THR |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
Fire load | 1.68MJ | Weight | 6.5g |
Limit temperature range | -60 … +100 °C | Processing temperature | -35 … +60 °C |
ECCN | NO US CLASSIFICATION | PU (SPU) | 80 pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4066966578379 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
Solid conductor | 0.2 … 2.5 mm2 / 24 … 12 AWG | Fine-stranded conductor | 0.5 … 2.5 mm2 / 20 … 12 AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5 mm2 |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Conductor connection direction to PCB | 90° |
Number of poles | 6 |
Specifications may be subject to change without notice
