Product Model
209-458
Selling Points

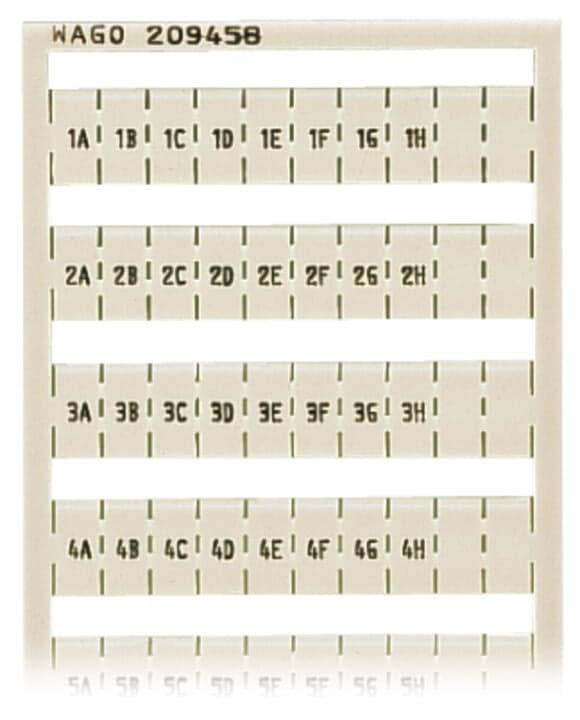

- 1Precision Marking: Horizontal marking system with symbols from 1A to 10H.
- 2Durable Design: White, snap-on type markers for long-lasting use.
- 3High-Quality Material: Made from robust materials for reliable performance.
- 4Easy Installation: Snap-on design for quick and secure installation.
- 5Compliant with Standards: Meets industrial standards and is ROHS compliant.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | 1A, 1B, …, 1G, 1H, … to 10A, 10B, …, 10G, 10H, , ; |
Marking (number) | 1 | Marking direction | Horizontal marking |
Marking color | black | Marking type | Symbol |
Marking differentiation | Consecutive symbols each strip | Delivery form | Marker card |
Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
Marker/strip width | 5?mm | Marker width | 5mm |
Smear resistance | EN 60998-1:2004 | Color | white |
UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
Weight | 7.8g | Fire load | 0.234MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(5)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332097895 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
